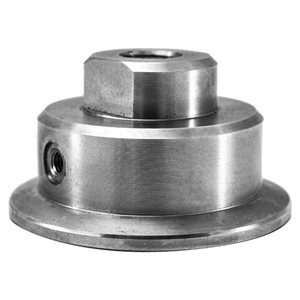

D20 Sanitary Seal
APPLICATIONS:
- D20 may be attached to any Winters all SS gauge for sanitary installations.
DESCRIPTION & FEATURES:
- Meets the requirements of dairy, food, beverage, chemical and pharmaceutical industries
- 3A approved
- ASME B40.100 compliant
- RoHS compliant
- CRN registered
- 5 year warranty
DOCUMENTATION:
Housing | AISI 316 SS |
Diaphragm | AISI 316L SS, welded |
Minimum Operating Pressure | 30 psi (200 kPa) |
Maximum Operating Pressure | 600 psi (4,140 kPa) |
Gauge Connection | 1/4” NPTF |
Process Connection | 1.5” (40mm) and 2” (50mm) Tri-Clamp® fitting standard |
Process Temperature | -4°F to 248°F (-20°C to 120°C) |
Surface Finish | 8 Ra |
