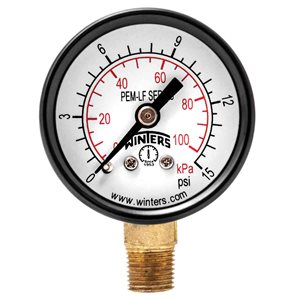

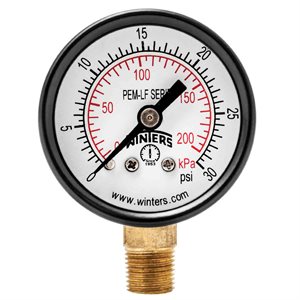

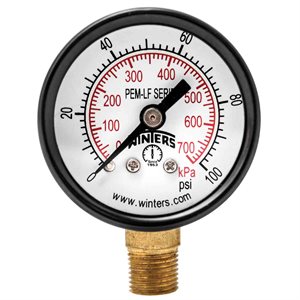

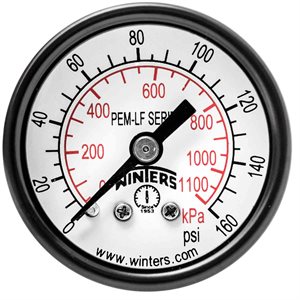

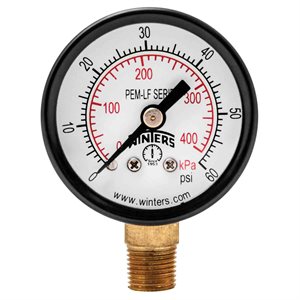

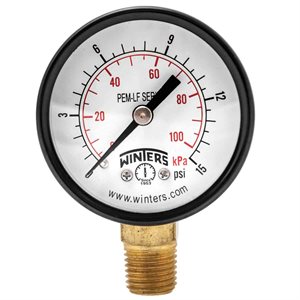

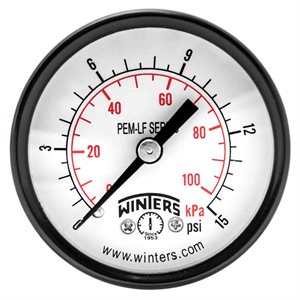

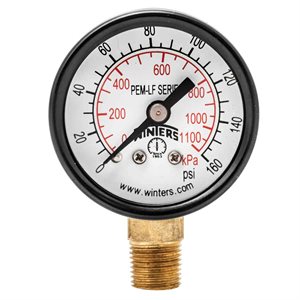

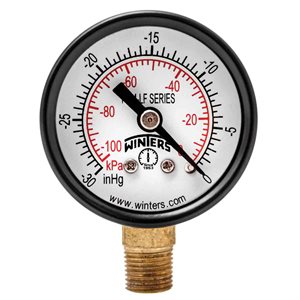

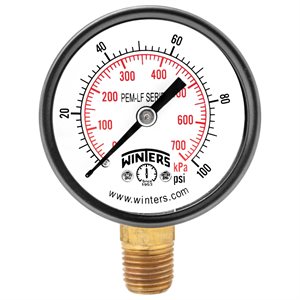

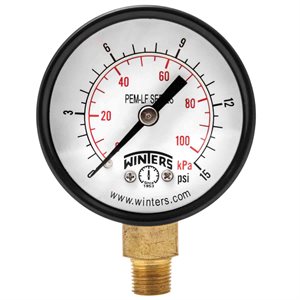

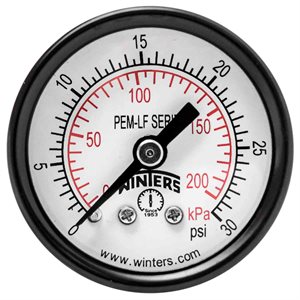

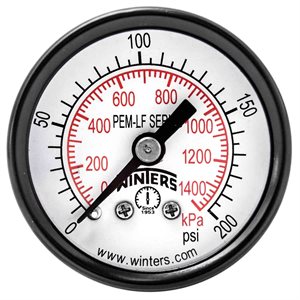

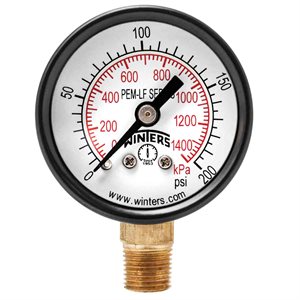

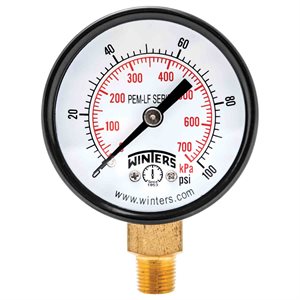

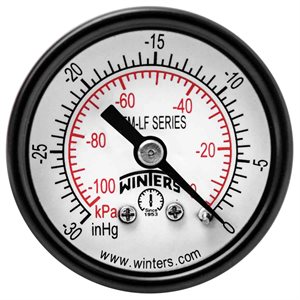

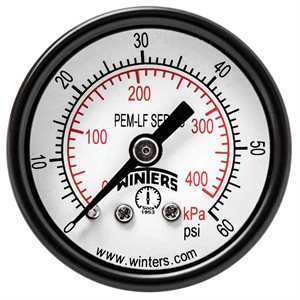

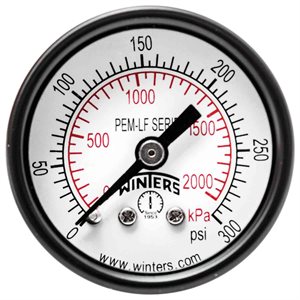

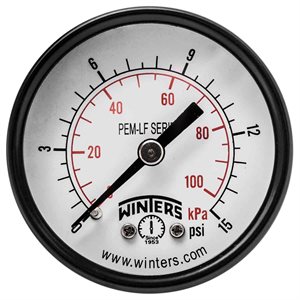

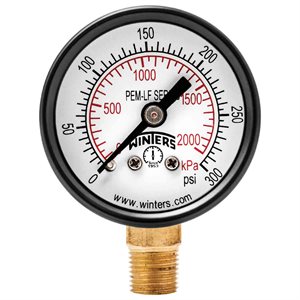

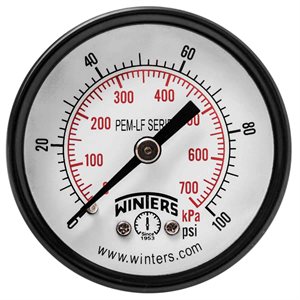

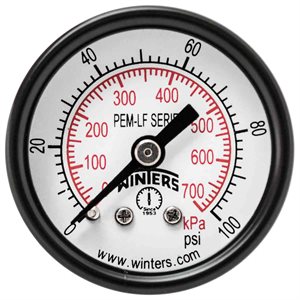

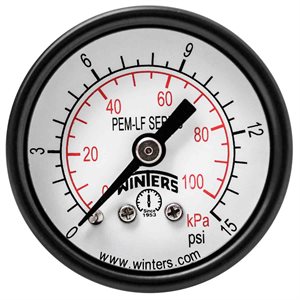

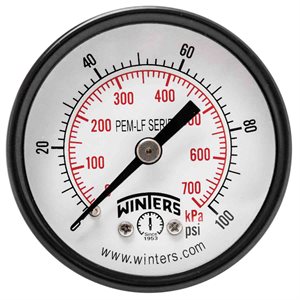

PEM-LF Lead Free Economy Gauge
DownloadAPPLICATIONS:
- Plumbing, heating, air conditioning, pneumatic, hydraulic, water tanks, air compressors, OEM
DESCRIPTION & FEATURES:
- Most economical, all-purpose pressure gauge
- 1.5” (40mm) to 4” (100mm) sizes
- Friction bezel rings
- Black steel case
- Brass or lead free brass wetted parts
- ASME B40.100 compliant
- ±3-2-3% accuracy
- CRN registered
- 5 year warranty
DOCUMENTATION:
| Case | Steel, painted black (plastic available) |
| Lens | 1.5” (40mm), 2” (50mm), 2.5” (63mm): Acrylic 4” (100mm): Glass |
| Ring | 1.5” (40mm), 2” (50mm): Steel, painted black 2.5” (63mm), 4” (100mm): Steel, chrome plated |
| Socket | PEM: Brass PEM-LF: Lead Free Brass |
| Connection | 1/8” NPT or 1/4” NPT standard |
| Bourdon Tube | PEM: Phosphor bronze PEM-LF: Lead free phosphor bronze |
| Movement | Brass |
| Pointer | Aluminum, black |
| Welding | Silver alloy |
| Over-Pressure Limit | 25% of full scale value |
| Working Pressure | Maximum 75% of full scale value |
| Ambient/Process Temperature | -40°F to 150°F (-40°C to 65°C) |
| Accuracy | ±3-2-3% ANSI/ASME Grade B |
| Enclosure Rating | IP52 |
| Warning |  Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
