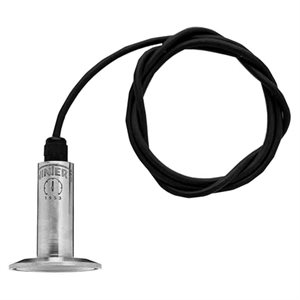

LST 3A Sanitary Pressure Transmitter



APPLICATIONS:

  • Designed for all sanitary applications including food & beverage, dairy, pharmaceutical and biotechnical
  • Built to withstand the harshest of sanitary applications and where 3A approval is required
  • For gas, air, liquid, pasty or powdery media

DESCRIPTION & FEATURES:

  • Constructed of 316 and 316L welded stainless steel, NEMA 4X rated
  • 3A approved
  • Excellent accuracy rating of ±0.25% full scale output
  • Available with a 0.5” (13mm) to 5” (127mm) Tri-Clamp®
  • Pressure ranges 0/3 to 1,000 psi
  • 5 year warranty

DOCUMENTATION:

Electrical Output Signal 4-20mA, 2 wire (optional 0/5 Vdc, 3 wire)
Electrical Connector 10' (3m) cable, flying leads
Excitation Voltage 8-38 Vdc
Accuracy ±0.25% ANSI/ASME Grade 3A
EMI/RFI Enclosure Rating Meets and exceeds CE standards
Wetted Parts/Connection 316L SS Tri-Clamp®
Housing 316 SS
Enclosure Rating NEMA 4X (IP65)
Proof Pressure 2X full scale
Burst Pressure 5X full scale (maximum 3,000 psi)
Normal Operating Temperature Range -40°F to 200°F (-40°C to 93°C)
Long Term Stability ≤0.25%/yr
Weight 10 oz (283g)

  • Display Type
  • Results per Page
  • Sort by
1.5" SANITARY TRANSMITTER 0 / 1000 PSI
  • CAD $3,784.23 /EACH
  • List Price CAD $3,784.23 /EACH
  • EACH
  • Qty avail.: 0
1.5" SANITARY TRANSMITTER 0 / 200 PSI
  • CAD $3,784.23 /EACH
  • List Price CAD $3,784.23 /EACH
  • EACH
  • Qty avail.: 0
1.5" SANITARY TRANSMITTER 0 / 300 PSI
  • CAD $3,784.23 /EACH
  • List Price CAD $3,784.23 /EACH
  • EACH
  • Qty avail.: 0
1.5" SANITARY TRANSMITTER 0 / 500 PSI
  • CAD $3,784.23 /EACH
  • List Price CAD $3,784.23 /EACH
  • EACH
  • Qty avail.: 0
1.5" SANITARY TRANSMITTER 0 / 750 PSI
  • CAD $3,784.23 /EACH
  • List Price CAD $3,784.23 /EACH
  • EACH
  • Qty avail.: 0
2" SANITARY TRANSMITTER 0 / 1000 PSI
  • CAD $3,784.23 /EACH
  • List Price CAD $3,784.23 /EACH
  • EACH
  • Qty avail.: 0
2" SANITARY TRANSMITTER 0 / 200 PSI
  • CAD $3,784.23 /EACH
  • List Price CAD $3,784.23 /EACH
  • EACH
  • Qty avail.: 0
2" SANITARY TRANSMITTER 0 / 300 PSI
  • CAD $3,784.23 /EACH
  • List Price CAD $3,784.23 /EACH
  • EACH
  • Qty avail.: 0
2" SANITARY TRANSMITTER 0 / 750 PSI
  • CAD $3,784.23 /EACH
  • List Price CAD $3,784.23 /EACH
  • EACH
  • Qty avail.: 0
LST TRANSMITTER 200PSI BENDIX 6-PIN 1.5" TRI-CLAMP
  • Contact us for pricing

  • Qty avail.: 0
