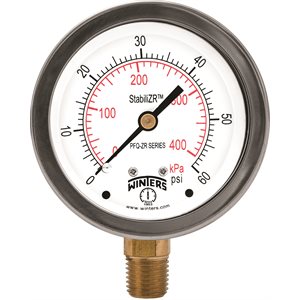

PFQ-ZR StabiliZR Stainless Steel Gauge
DownloadAPPLICATIONS:
- Ideal for pumps, compressors, hydraulic presses, machinery and motors that operate in harsh environments
DESCRIPTION & FEATURES:
- StabiliZR™ dampened movement minimizes effects of pulsation and vibration without liquid filling (flutterless pointer)
- Restricted orifice standard on dual scale
- Crimp-on bezel
- Brass internals
- Dual scale (psi/kPa)
- U-Clamps and front flanges for panel mounting
- ASME B40.100 compliant (EN837-1 available)
- CRN registered
- 5 year warranty
DOCUMENTATION:
| Dial | 2.5” (63mm), 4" (100mm) aluminum with red and black markings |
| Case | 304 SS (dry) |
| Lens | Polycarbonate |
| Ring | 304 SS (crimped on) |
| Socket | Brass with restricted orifice (dual scale only) |
| Connection | 1/4” or 1/2" NPT |
| Bourdon Tube | Phosphor bronze |
| Movement | Brass with StabiliZR™ dampened movement (silicone in sealed chamber) |
| Pointer | Anodized black aluminum |
| Over-pressure Limit | 25% for pressures up to 1,450 psi (9,998 kPa), 15% for pressures over 1,500 psi (10,342 kPa) |
| Socket Gasket | Buna N for two piece internal socket seal |
| Fill Plug | Buna N |
| Lens Ring Gasket | Silicone Rubber |
| Working Pressure | 75% of full scale |
| Ambient/Process Temperature | -40°F to 200°F (-40°C to 93°C) |
| Accuracy | ±1.5% of full scale value |
| Enclosure Rating | IP65 |
