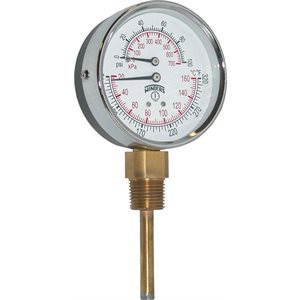

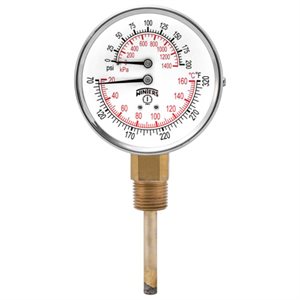

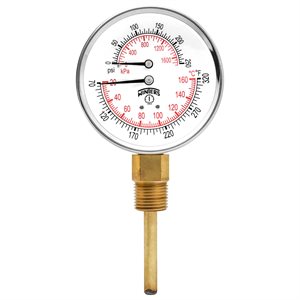

TTD Tridicator
APPLICATIONS:
- Hot water and steam pressure for boilers
DESCRIPTION & FEATURES:

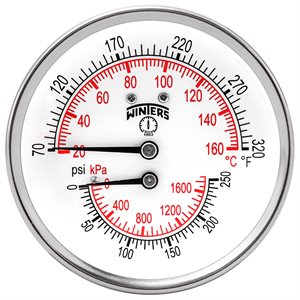

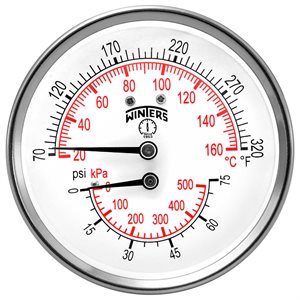

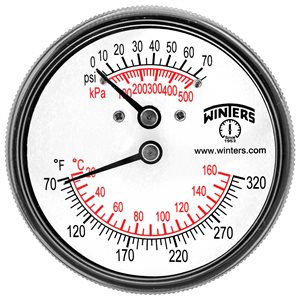

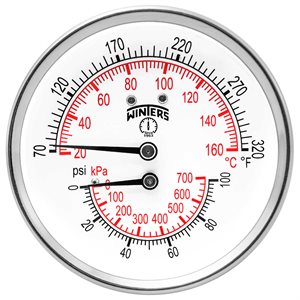

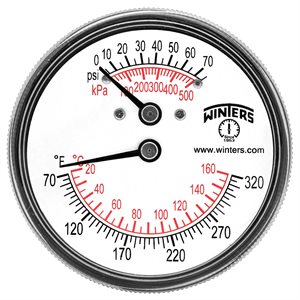

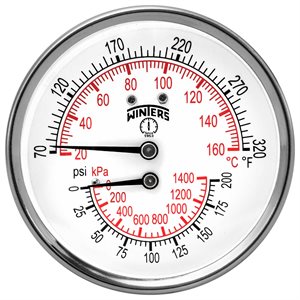

- Measures both pressure and temperature on the same dial
- 2.5” (63mm) and 3” (75mm) dials
- Dual scale (°F & °C)
- Back or bottom connection
- Brass wetted parts
- 1" (25mm), 2” (50mm) and 2.5" (63mm) stems
- Multiple pressure and temperature ranges available
- Ranges are compliant to industry standard ASME Boiler Code Section IV HG-612
- 5 year warranty
DOCUMENTATION:
Dial | 2.5” (63mm), 3” (75mm) aluminum, painted white |
Case | Steel, painted black |
Lens | 2.5″ (63mm): Acrylic, threaded 3” (75mm): Glass |
Ring | 3” (75mm): Chrome |
Stem | Brass |
Socket | Brass |
Tube | Phosphor bronze |
Movement | Brass and phosphor bronze |
Sensing Element | Temperature: Bi-metallic coil Pressure: Bourdon tube |
Pointer | Aluminum, anodized black |
Welding | Tin-alloy solder |
Pressure Limit | 75% of full scale range |
Ambient Temperature | 23°F to 122°F (-5°C to 50°C) |
Process Temperature | 75% of full scale range |
Accuracy | Pressure: ±3-2-3% Temperature: ±3% of full scale |
Enclosure Rating | IP50 |
