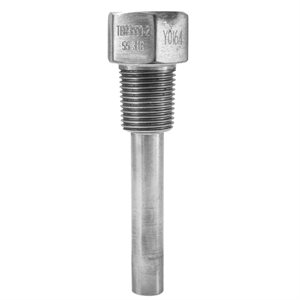

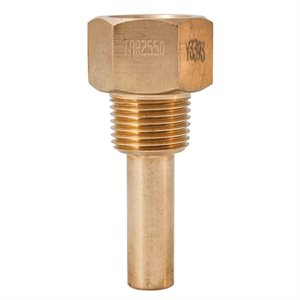

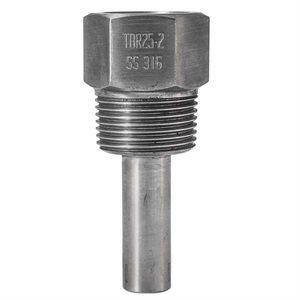

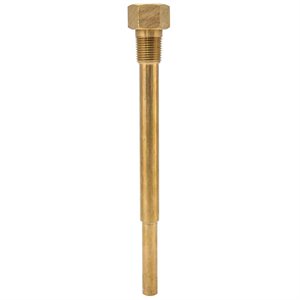

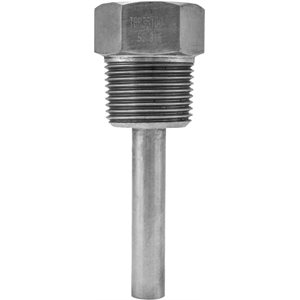

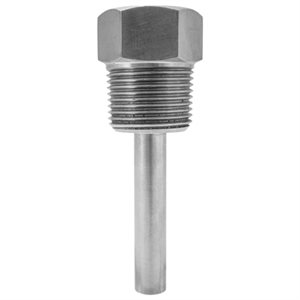

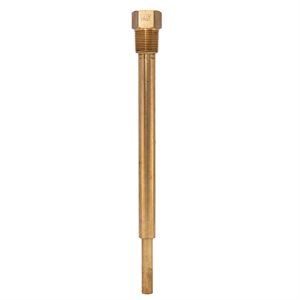

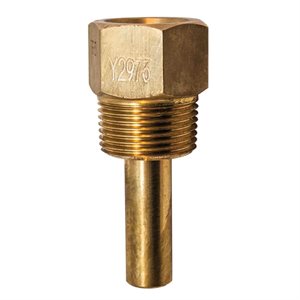

TBR Bi-Metal Threaded Thermowell




APPLICATIONS:

  • Allows for the creation of a “sealed system”, whereby the thermometer can be removed from the application without the need for shutting down or draining the system
  • To protect the thermometer from possible exposure to the process media

DESCRIPTION & FEATURES:

  • Available in a wide range of materials for use on most applications
  • Standard “stepped construction” offering is complemented by an array of custom thermowells including: straight, tapered, sanitary and flanged configurations
  • RoHS compliant (304 SS and 316 SS thermowells only)
  • CRN registered
  • 5 year warranty

DOCUMENTATION:

Thermometer Connection

1/2” NPTF connection standard

Other thread sizes are available upon request

Process Connection

1/2”, 3/4” or 1” NPT connection standard

Other thread sizes are available upon request

Bore 0.260” (6.5mm) bore standard
Construction

Stepped construction standard

Tapered construction available upon request

Material

Brass, AISI 304 SS, AISI 316 SS standard

Other materials available upon request

Warning (brass therowells only) Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.  For more information go to www.P65Warnings.ca.gov.

  • Display Type
  • Results per Page
  • Sort by
1 / 2" X 1" 304SS FOR 12" STEM
  • CAD $210.89 /EACH
  • List Price CAD $210.89 /EACH
  • EACH
  • Qty avail.: 1
1 / 2" X 1" 304SS FOR 12" STEM
  • CAD $253.08 /EACH
  • List Price CAD $253.08 /EACH
  • EACH
  • Qty avail.: 0
1 / 2" X 1" 304SS FOR 9" STEM
  • CAD $102.95 /EACH
  • List Price CAD $102.95 /EACH
  • EACH
  • Qty avail.: 8
1 / 2" X 1" 316SS FOR 6" STEM
  • CAD $82.90 /EACH
  • List Price CAD $82.90 /EACH
  • EACH
  • Qty avail.: 0
1 / 2" X 1" 316SS FOR 6" STEM
  • CAD $89.52 /EACH
  • List Price CAD $89.52 /EACH
  • EACH
  • Qty avail.: 0
1 / 2" X 1 / 2" BRASS FOR 9" STEM
  • CAD $79.21 /EACH
  • List Price CAD $79.21 /EACH
  • EACH
  • Qty avail.: 0
1 / 2"X1 / 2" 304SS FOR 12" STEM,
  • CAD $210.89 /EACH
  • List Price CAD $210.89 /EACH
  • EACH
  • Qty avail.: 0
1 / 2"X1 / 2" 304SS FOR 6" STEM,
  • CAD $82.90 /EACH
  • List Price CAD $82.90 /EACH
  • EACH
  • Qty avail.: 3
1 / 2"X1 / 2" 304SS FOR 9" STEM, 304SS, U=7.5'
  • CAD $102.95 /EACH
  • List Price CAD $102.95 /EACH
  • EACH
  • Qty avail.: 1
1 / 2"X1 / 2" 316SS FOR 4" STEM
  • CAD $75.35 /EACH
  • List Price CAD $75.35 /EACH
  • EACH
  • Qty avail.: 7
1 / 2'' X 1'' 316SS FOR 4'' STEM
  • CAD $75.35 /EACH
  • List Price CAD $75.35 /EACH
  • EACH
  • Qty avail.: 10+
12" 304 ST / ST THERMOWELL, 3 / 4" NPT
  • CAD $210.89 /EACH
  • List Price CAD $210.89 /EACH
  • EACH
  • Qty avail.: 2
12" 304 ST / ST THERMOWELL, 3 / 4" NPT,3"LAG
  • CAD $253.08 /EACH
  • List Price CAD $253.08 /EACH
  • EACH
  • Qty avail.: 0
12" 316 ST / ST THERMOWELL 3 / 4" NPT
  • CAD $236.32 /EACH
  • List Price CAD $236.32 /EACH
  • EACH
  • Qty avail.: 0
12" 316 ST / ST THERMOWELL 3 / 4" NPT EXTEN.
  • CAD $283.60 /EACH
  • List Price CAD $283.60 /EACH
  • EACH
  • Qty avail.: 0
12" BRASS THERMOWELL, 3 / 4" NPT
  • CAD $164.23 /EACH
  • List Price CAD $164.23 /EACH
  • EACH
  • Qty avail.: 0
12" BRASS THERMOWELL, 3 / 4" NPT, 3" LAG
  • CAD $197.08 /EACH
  • List Price CAD $197.08 /EACH
  • EACH
  • Qty avail.: 2
18" 316 ST / ST THERMOWELL 3 / 4" NPT
  • CAD $550.94 /EACH
  • List Price CAD $550.94 /EACH
  • EACH
  • Qty avail.: 0
2.5" 304 ST / ST THERMOWELL, 3 / 4" NPT
  • CAD $57.01 /EACH
  • List Price CAD $57.01 /EACH
  • EACH
  • Qty avail.: 10+
2.5" 304 ST / ST THERMOWELL,1 / 2"NPT
  • CAD $39.42 /EACH
  • List Price CAD $39.42 /EACH
  • EACH
  • Qty avail.: 0
2.5" 316 ST / ST. THERMOWELL, 3 / 4" NPT
  • CAD $61.66 /EACH
  • List Price CAD $61.66 /EACH
  • EACH
  • Qty avail.: 10+
2.5'' BRASS THERMOWELL, 1 / 2'' NPT
  • CAD $47.12 /EACH
  • List Price CAD $47.12 /EACH
  • EACH
  • Qty avail.: 10+
2.5'' BRASS THERMOWELL, 3 / 4'' NPT
  • CAD $47.12 /EACH
  • List Price CAD $47.12 /EACH
  • EACH
  • Qty avail.: 10+
3 / 4" x 1 / 2" 316SS Tapered Well U=10.5"
  • CAD $165.87 /EACH
  • List Price CAD $165.87 /EACH
  • EACH
  • Qty avail.: 0
