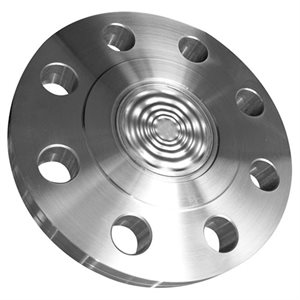

D46 Flanged Flush Mount Seal



APPLICATIONS:

  • Oil refineries, pulp and paper mills, chemical plants
  • Where media buildup is a concern

DESCRIPTION & FEATURES:

  • One-piece design–no internal gaskets or o-rings
  • Diaphragm is flush to the gasket sealing surface so no internal cavities for media buildup
  • Various sizes available
  • ASME B40.100 compliant
  • 5 year warranty
Housing 316 SS
Diaphragm 316L SS bonded to housing
Construction One piece construction
Connection

1/4”, 1/2” NPTF gauge connections standard

1.5″ (40mm), 2” (50mm) and 3” (75mm) pipe size

Maximum Temperature Limit 450°F (232°C)

  • Display Type
  • Results per Page
  • Sort by
2'' 150#RF bonded diaphragm, 1 / 2'' NPT conn., 316SS Housing / Dia Mat'l
  • CAD $1,859.85 /EACH
  • Retail price CAD $947.70 /EACH
  • EACH
  • Qty avail.: 0
2'' 150#RF bonded diaphragm, 1 / 4'' NPT conn., 316SS Housing / Dia Mat'l
  • CAD $1,859.85 /EACH
  • Retail price CAD $947.70 /EACH
  • EACH
  • Qty avail.: 0
2'' 300#RF bonded diaphragm, 1 / 2'' NPT conn., 316SS Housing / Dia Mat'l
  • CAD $2,110.35 /EACH
  • Retail price CAD $1,075.33 /EACH
  • EACH
  • Qty avail.: 0
2'' 300#RF bonded diaphragm, 1 / 4'' NPT conn., 316SS Housing / Dia Mat'l
  • CAD $2,110.35 /EACH
  • Retail price CAD $1,075.33 /EACH
  • EACH
  • Qty avail.: 0
2'' 600#RF bonded diaphragm, 1 / 2'' NPT conn., 316SS Housing / Dia Mat'l
  • CAD $2,684.87 /EACH
  • Retail price CAD $1,368.07 /EACH
  • EACH
  • Qty avail.: 0
2'' 600#RF bonded diaphragm, 1 / 4'' NPT conn., 316SS Housing / Dia Mat'l
  • CAD $2,684.87 /EACH
  • Retail price CAD $1,368.07 /EACH
  • EACH
  • Qty avail.: 0
3'' 150#RF bonded diaphragm, 1 / 2'' NPT conn., 316SS Housing / Dia Mat'l
  • CAD $2,214.88 /EACH
  • Retail price CAD $1,128.62 /EACH
  • EACH
  • Qty avail.: 0
3'' 150#RF bonded diaphragm, 1 / 4'' NPT conn., 316SS Housing / Dia Mat'l
  • CAD $2,214.88 /EACH
  • Retail price CAD $1,128.62 /EACH
  • EACH
  • Qty avail.: 0
3'' 300#RF bonded diaphragm, 1 / 2'' NPT conn., 316SS Housing / Dia Mat'l
  • CAD $2,524.86 /EACH
  • Retail price CAD $1,286.56 /EACH
  • EACH
  • Qty avail.: 0
3'' 300#RF bonded diaphragm, 1 / 4'' NPT conn., 316SS Housing / Dia Mat'l
  • CAD $2,524.86 /EACH
  • Retail price CAD $1,286.56 /EACH
  • EACH
  • Qty avail.: 0
3'' 600#RF bonded diaphragm, 1 / 2'' NPT conn., 316SS Housing / Dia Mat'l
  • CAD $3,034.33 /EACH
  • Retail price CAD $1,546.16 /EACH
  • EACH
  • Qty avail.: 0
3'' 600#RF bonded diaphragm, 1 / 4'' NPT conn., 316SS Housing / Dia Mat'l
  • CAD $3,034.33 /EACH
  • Retail price CAD $1,546.16 /EACH
  • EACH
  • Qty avail.: 0
