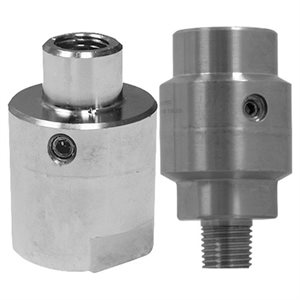

D30 High Pressure Seal
APPLICATIONS:
- Offers protection for pressure instruments (gauges and transmitters) from corrosive, contaminated or viscous media
- Ideally suited for applications where space limitations exist
DESCRIPTION & FEATURES:
- Compact, lightweight and economical
- Constructed of AISI 316 stainless steel and is welded together into a one piece unit
- ASME B40.100 compliant
- RoHS compliant
- CRN registered
- 5 year warranty
DOCUMENTATION:
Housing | AISI 316 SS |
Diaphragm | AISI 316L SS, welded |
Minimum Operating Pressure | 1,000 psi (6,900 kPa) |
Maximum Operating Pressure | 6,000 psi (41,300 kPa) |
Gauge Connection | 1/4” NPTF |
Process Connection | 1/4” NPTF or NPTM |
Process Temperature | -49°F to 302°F (-45°C to 150°C) |
