PTS Tube Stub Gauge





APPLICATIONS:

  • Specifically designed to be utilized with tube fitting applications
  • Allows installation where space is limited
  • Used where PTFE free connection is needed
  • Used where gauge alignment is critical

DESCRIPTION & FEATURES:

  • Gauge designed to be used with most standard double ferrule tube fittings, such as Parker A-Lok®
  • Heavy duty, stainless steel, liquid-filled gauge
  • Back, bottom, or panel mount configurations
  • ±1.5% accuracy
  • Facilitates 360° orientation
  • Elimination of leak point
  • PTFE free connection
  • ASME B40.100 compliant
  • CRN registered
  • 5 year warranty

DOCUMENTATION:

Case Grade 304 SS
Lens Polycarbonate
Ring 304 SS, bayonet
Block 316L SS
Socket 316L SS
Connection 1/4” Tube Stub
Bourdon Tube 316L SS
Movement 304 SS
Pointer Aluminum, anodized black
Welding Laser welded socket to case
Fill Liquid Glycerin
Over-pressure Limit 15% of full scale
Gasket Materials Buna N
Working Pressure 75% of full scale
Ambient/Process Temperature

Dry: -40°F to 200°F (-40°C to 93°C)

Glycerin filled: -4°F to 150°F (-20°C to 65°C)
Accuracy ±1.5% of full scale
Enclosure Rating IP66 per EN60529-1 (IEC529-1)

  • Display Type
  • Results Per Page
  • Sort By

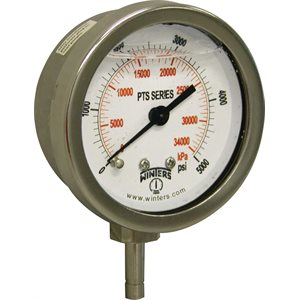

2.5" LF / SS,1 / 4 X 3 / 4" BTM TUBE STUB 0 / 3000 PSI / KPA
  • CAD $178.09 /EACH
  • EACH
  • Qty avail.: 0
2.5"DIAL, 1 / 4" X 3 / 4" BTM TUBE STUB,0 / 1000 PSI / KPA
  • CAD $178.09 /EACH
  • EACH
  • Qty avail.: 0

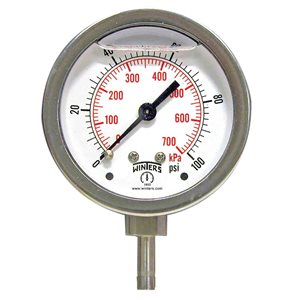

2.5"DIAL,1 / 4" X 3 / 4" BTM TUBE STUB,0-100 PSI / KPA
  • CAD $161.91 /EACH
  • EACH
  • Qty avail.: 0

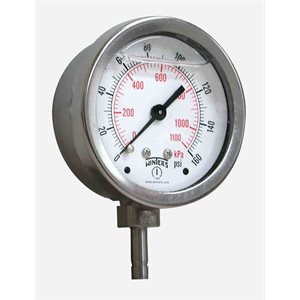

2.5"DIAL,1 / 4" X 3 / 4" BTM TUBE STUB,0-160 PSI / KPA
  • CAD $161.91 /EACH
  • EACH
  • Qty avail.: 0
2.5"DIAL,1 / 4" X 3 / 4" BTM TUBE STUB,0-200 PSI / KPA
  • CAD $161.91 /EACH
  • EACH
  • Qty avail.: 0
2.5"DIAL,1 / 4" X 3 / 4" BTM TUBE STUB,0-300 PSI / KPA
  • CAD $161.91 /EACH
  • EACH
  • Qty avail.: 0
2.5"DIAL,1 / 4" X 3 / 4" BTM TUBE STUB,0-5,000 PSI / KPA
  • CAD $178.09 /EACH
  • EACH
  • Qty avail.: 0
2.5"DIAL,1 / 4" X 3 / 4" BTM TUBE STUB,0-600 PSI / KPA
  • CAD $161.91 /EACH
  • EACH
  • Qty avail.: 0
2.5"DIAL,1 / 4" X 3 / 4" BTM TUBE STUB,0 / 400 PSI / KPA
  • CAD $161.91 /EACH
  • EACH
  • Qty avail.: 1
2.5"DIAL,1 / 4" X 3 / 4" BTM TUBE STUB,0 / 60 PSI / KPA
  • CAD $161.91 /EACH
  • EACH
  • Qty avail.: 0
2.5"DIAL,1 / 4"X3 / 4"CENTR BK TUBE STUB,0-15 PSI / KPA
  • CAD $178.09 /EACH
  • EACH
  • Qty avail.: 0
2.5"DIAL,1 / 4"X3 / 4"CENTR BK TUBE STUB,0-200 PSI / KPA
  • CAD $178.09 /EACH
  • EACH
  • Qty avail.: 0
2.5"DIAL,1 / 4"X3 / 4"CENTR BK TUBE STUB,0-30 PSI / KPA
  • CAD $178.09 /EACH
  • EACH
  • Qty avail.: 0
2.5"DIAL,1 / 4"X3 / 4"CENTR BK TUBE STUB,0-300 PSI / KPA
  • CAD $178.09 /EACH
  • EACH
  • Qty avail.: 0
2.5"DIAL,1 / 4"X3 / 4"CENTR BK TUBE STUB,0-400 PSI / KPA
  • CAD $178.09 /EACH
  • EACH
  • Qty avail.: 0
2.5"DIAL,1 / 4"X3 / 4"CENTR BK TUBE STUB,0-60 PSI / KPA
  • CAD $178.09 /EACH
  • EACH
  • Qty avail.: 4
2.5"DIAL,1 / 4"X3 / 4"CENTR BK TUBE STUB,0-600 PSI / KPA
  • CAD $178.09 /EACH
  • EACH
  • Qty avail.: 0
2.5"DIAL,1 / 4"X3 / 4"CENTR BK TUBE STUB,0 / 1000PSI / KPA
  • CAD $195.87 /EACH
  • EACH
  • Qty avail.: 0
LF / SS TUBE STUB, BACK CONNECTION, 0 / 100 PSI / KPA
  • CAD $178.09 /EACH
  • EACH
  • Qty avail.: 0
PTS SERIES, 2.5'', 0 / 1500 PSI ONLY, 1 / 4'' TUBE STUB, LM
  • CAD $178.09 /EACH
  • EACH
  • Qty avail.: 0
PTS SERIES, 2.5'', 0 / 1500 PSI / KPA, 1 / 4'' TUBE STUB, CBM
  • CAD $195.89 /EACH
  • EACH
  • Qty avail.: 0
PTS SERIES, 2.5'', 0 / 1500 PSI / KPA, 1 / 4'' TUBE STUB, LM
  • CAD $178.09 /EACH
  • EACH
  • Qty avail.: 0
PTS SERIES, 2.5'', 0 / 2000 PSI ONLY, 1 / 4'' TUBE STUB, LM
  • CAD $178.09 /EACH
  • EACH
  • Qty avail.: 0
PTS SERIES, 2.5'', 0 / 2000 PSI / KPA, 1 / 4'' TUBE STUB, CBM
  • CAD $195.89 /EACH
  • EACH
  • Qty avail.: 0
