PET-LF Lead Free Economy Test Gauge

APPLICATIONS:

Residential & commercial pressure testing of gas, air and water lines

DESCRIPTION & FEATURES:

Economical pressure gauge and valve body assembly used for pressure testing

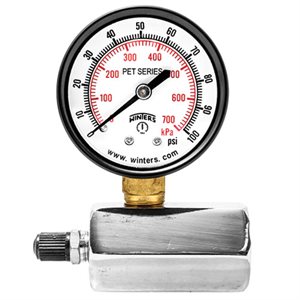

Bleed port and plated housing on the gas test assembly

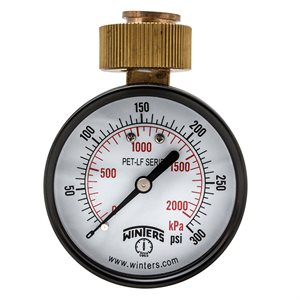

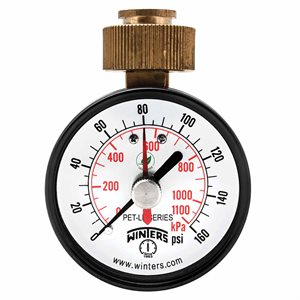

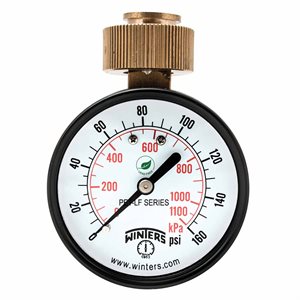

Swivel hose adaptor on the Water Test Gauge
Black steel case
Brass or lead free brass wetted parts
Dual scale (PSI/kPa)
±3-2-3% accuracy
ASME B40.100 compliant
CRN registered5 year warranty

DOCUMENTATION:

SPECIFICATIONS & ORDER INFORMATION

SPECIFICATIONS

Dial	2″ (50mm), 2.5″ (63mm) white aluminum with black and red markings
Case	Steel painted black
Lens	PETG: Polycarbonate PETM, PETM-LF, PETW, PETW-LF: Acrylic
Ring	Steel, painted black
Bourdon Tube	PET: Phosphor bronze PET-LF: Lead free phosphor bronze
Movement	Brass
Pointer	Aluminum, black
Connection	PETG: 3/4” NPTF PETM, PETM-LF, PETW, PETW-LF: 3/4” female swivel hose connection
Maximum Pointer	Available on Water Test Gauge only
Welding	#50 tin solder
Ambient/Process Temperature	-40°F to 150°F (-40°C to 65°C)
Gas Test	40°F to 150°F (-40°C to 65°C)
Water Test	32°F to 150°F (0°C to 65°C)
Working Pressure	Maximum 75% of full scale value
Accuracy	±3-2-3% ANSI/ASME Grade B
Enclosure Rating	IP52
Warning	Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
