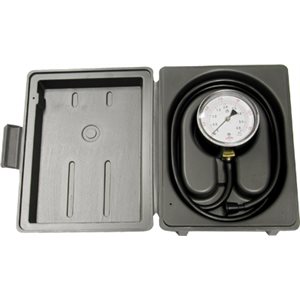

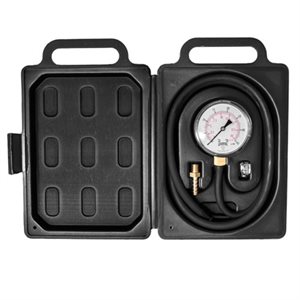

PLT Low Pressure Test Kit
DownloadAPPLICATIONS:
- Test kit for low pressure gas installations
DESCRIPTION & FEATURES:
- Low pressure gauge built into protective case for ease in use and durability
- Sensitive diaphragm gauge available in 3 pressure ranges
- Re-zero with external recalibration screw
- Easier to use than a manometer
- Plastic blow molded case for added durability
- Sleek design featuring secure latch
- Facilitates safe handling
- ASME B40.100 compliant
- CRN registered
- 5 year warranty
DOCUMENTATION:
Specifications – Gauge | |
| Dial | 2.5″ (63mm), white aluminum dial with red and black markings |
| Case/Ring | Steel, painted black |
| Lens | Polycarbonate |
| Connection | Brass hose barb (1/4”) (gear clamp included) |
| Diaphragm Element | Phosphor bronze |
| Movement | Engineering plastic upper and lower plate with brass pinion and sector, with zero adjustment |
| Ambient Temperature | -40°F to 150°F (-40°C to 65°C) |
| Accuracy | ±3-2-3% ANSI/ASME Grade B |
| Enclosure Rating | IP52 |
| Warning |  Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
Specifications – Case | |
| Tube Nipple | Rubber: 0.256” (6.5mm) ID x 0.472” (12mm) OD x 1.339” (34mm) 1/4″ NPTM x 1/4″ hose barb |
| Case Material | Plastic blow molded: 5.75” x 7.56” (146mm x 192mm) |
| Hose Tube | Rubber: 3’ (91cm) in length; 0.197” (5mm) ID x 0.315” (8mm) OD |
| Accessory | Easy to install clamp |
