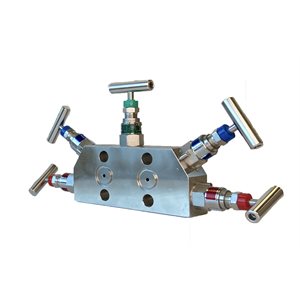

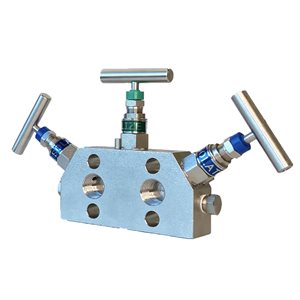

MVA 3 & 5 Handle Manifold Valve
APPLICATIONS:
-
- Designed to be perfectly installed with Winters LY36 Series differential transmitter. Manifolds are critical in process and industrial environments for the enabling of shut-downs for the testing, repair and upgrading of instruments.
DESCRIPTION & FEATURES:
-
- Rugged 3 or 5 -handle manifolds are designed for use with differential pressure transmitters and impulse lines
- 1-piece 316 stainless steel body
- 3-handle – 2 isolation valves, 1 equalizing valve and 2 vent valves
- 5 – handle – 2 isolation valves, 1 equalizing valve
- PTFE packing to prevent against corrosion and seized up
- CRN Pending
- 5 year warranty
3 – Handle | 5 – Handle | |
NPT Connection | 1/2” Female x 1/2” Female | 1/2” Female x 1/2” Female |
Material | Stainless Steel | Stainless Steel |
Seat | Hard Set | Hard Set |
Max Pressure | 6,000 psi | 6,000 psi |
