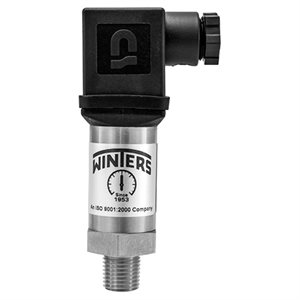

LE3 General Purpose Transmitter
APPLICATIONS:
- Suitable for all process and automation control, hydraulics and pneumatic sensing, pump and compressor monitoring, refrigeration and HVAC
DESCRIPTION & FEATURES:
- Developed for use in general industry and OEM applications, where versatility and economy are requirements
- Compact stainless steel construction with ceramic sensor
- Available ranges include in/Hg up to 5,000 psi
- Wide range of mechanical and electrical connections
- ±0.5% accuracy
- NEMA 4X / IP65 and IP67
- CE, CSA and RoHS compliant
- Approved for outdoor use
- Customizable
- 5 year warranty
DOCUMENTATION:
Output Signal | Standard 2-wire: 4-20 mA / Vs = 8-32 Vdc Optional 3-wire: 0-10 V / Vs = 14-30 Vdc Optional 3-wire ratiometric: Vsig = 0.5-4.5 Vs / Vs = 5 ± 0.5 Vdc |
Accuracy | ±0.5% FSO |
Permissible Load | 2-wire: Rmax = [(Vs – Vs min) / 0.02] Ohm 3-wire: Rmin = 10 kOhm |
Influence Effects | Supply: 0.05% FSO / 10 V Load: 0.05% FSO / kOhm |
Response Time | 2-wire: <10 ms 3-wire: <3 ms |
Measuring Rate | 1 kHz |
Thermal Error | <±0.5% FSO / 10K |
Permissible Temperatures | Medium: -13°F to 257°F (-25°C to 125°C) Electronics environment: -13°F to 185°F (-25°C to 85°C) Storage: -40°F to 185°F (-40°C to 85°C) |
Short-circuit Protection | Permanent 3-wire ratiometric: None |
Reverse Polarity Protection | No damage. No function. |
Electromagnetic Protection | Emission and immunity according to EN 61326 |
Stability | Vibration: 10 g, 25 Hz to 2 kHz according to DIN EN 60068-2-6 Shock: 500 g / 1 ms according to DIN EN 60068-2-27 |
Pollution Degree | 4, electrical equipment for outdoor use |
Pressure Port / Housing | 304 SS |
Wetted Parts | Seals: FKM (Viton® standard) Diaphragm: Ceramic AI2O3 96% |
Weight | 120 g |
Current Consumption | 2-wire: 25 mA max 3-wire voltage: 5 mA (short-circuit current 20 mA) 3-wire ratiometric: 1.5 mA |
Long-term Stability | <±0.3% FSO/yr at reference conditions |
Operation Life | >100 × 106 cycles |
CE Conformity | EMC directive: 2004/108/EC Pressure equipment directive: 97/23/EC (module A). Valid for devices with max permissible overpressure > 3,000 psi |
