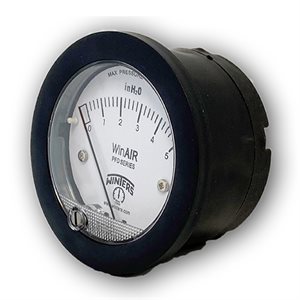

PFD WinAIR Compact Differential Gauge

PFD WinAIR Compact Differential Gauge

PFD WinAIR Compact Differential Gauge
Conforms to CE


APPLICATIONS:

    • Low pressure and differential monitoring for air and non-combustible gases including filters, blowers, vacuums, air handlers and clean rooms

DESCRIPTION & FEATURES:

    • Resistance-free differential gauge for all air and non-corrosive gas installations
    • Compact size and easy to read dial
    • Industrial grade nylon case
    • Easily accessible re-zero adjustment screw
    • 5% full scale accuracy
    • Mounting bracket with screws included
    • 5 year warranty

DOCUMENTATION:


    Dial 2 1/16” (52.4mm), white aluminum with black markings
    Case Glass filled nylon, black
    Lens Polycarbonate
    Ring Threaded die-cast black aluminum
    Process Connection 3/16″ barbed for ID tubing
    Movement Resistance-free and magnetic
    Pointer Aluminum, anodized black
    Over-pressure Limit Maximum pressure of 30 psi / 207 kPa
    Ambient/Process Temperatures 20°F to 120°F (-7°C to 49°C)
    Accuracy ± 5% of full scale
    Approvals  CE
    Accessories Panel mounting bracket, allen key, two nuts & bolts
    Installation Attention Only in vertical position
    Warning  This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

    • Display Type
    • Results per Page
    • Sort by
    PFD COMPACT 0 / 0.5'' H2O PA NYLON HOUSING 3 / 16'' BARBED CONNECTION ±5% ACC
    • CAD $160.16 /EACH
    • EACH
    • Qty avail.: 0
    PFD COMPACT 0 / 1.0'' H20 NYLON HOUSING 3 / 16'' BARBED CONNECTION ±5% ACC
    • CAD $160.16 /EACH
    • EACH
    • Qty avail.: 0
    PFD COMPACT 0 / 10.0'' H2O PA NYLON HOUSING 3 / 16'' BARBED CONNECTION ±5% ACC
    • CAD $150.15 /EACH
    • EACH
    • Qty avail.: 0
    PFD COMPACT 0 / 125 PA NYLON HOUSING 3 / 16'' BARBED CONNECTION ±5% ACC
    • CAD $160.16 /EACH
    • EACH
    • Qty avail.: 0
    PFD COMPACT 0 / 2.0'' H20 NYLON HOUSING 3 / 16'' BARBED CONNECTION ±5% ACC
    • CAD $160.16 /EACH
    • EACH
    • Qty avail.: 0
    PFD COMPACT 0 / 250 PA NYLON HOUSING 3 / 16'' BARBED CONNECTION ±5% ACC
    • CAD $160.16 /EACH
    • EACH
    • Qty avail.: 0
    PFD COMPACT 0 / 3.0'' H2O NYLON HOUSING 3 / 16'' BARBED CONNECTION ±5% ACC
    • CAD $160.16 /EACH
    • EACH
    • Qty avail.: 0
    PFD COMPACT 0 / 300 PA NYLON HOUSING 3 / 16'' BARBED CONNECTION ±5% ACC
    • CAD $160.16 /EACH
    • EACH
    • Qty avail.: 0
    PFD COMPACT 0 / 5.0'' H2O NYLON HOUSING 3 / 16'' BARBED CONNECTION ±5% ACC
    • CAD $150.15 /EACH
    • EACH
    • Qty avail.: 0
    PFD COMPACT 0 / 500 PA NYLON HOUSING 3 / 16'' BARBED CONNECTION ±5% ACC
    • CAD $160.16 /EACH
    • EACH
    • Qty avail.: 0
    PFD COMPACT 0 / 750 PA NYLON HOUSING 3 / 16'' BARBED CONNECTION ±5% ACC
    • CAD $160.16 /EACH
    • EACH
    • Qty avail.: 0
