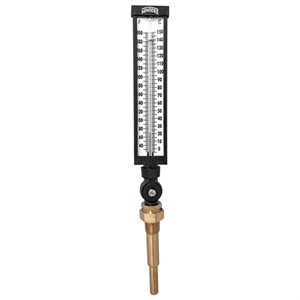

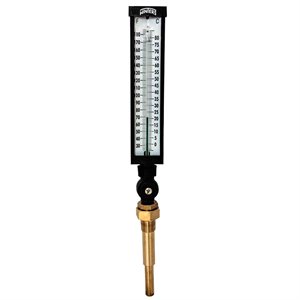

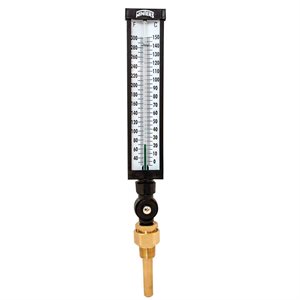

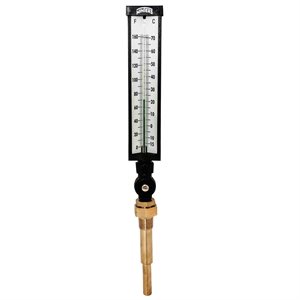

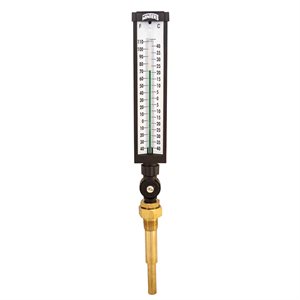

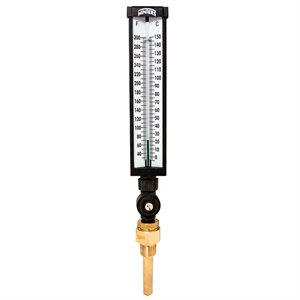

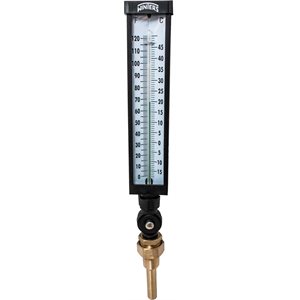

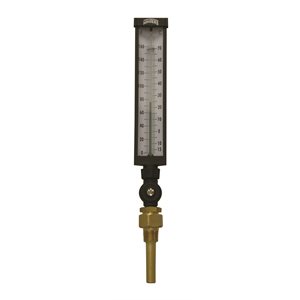

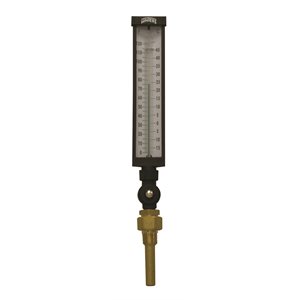

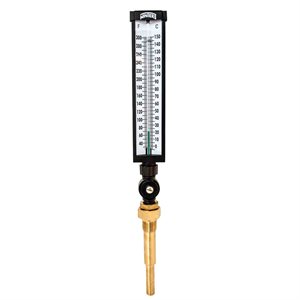

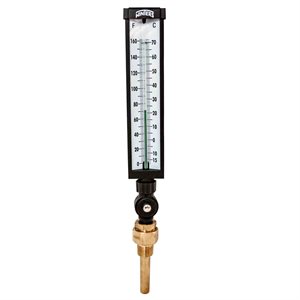

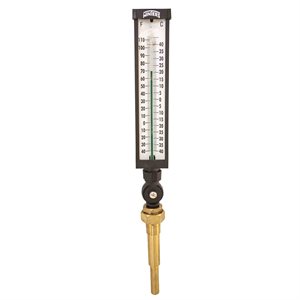

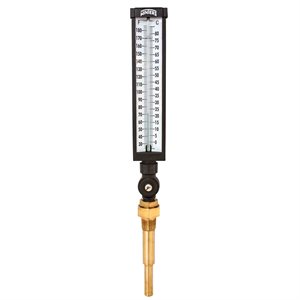

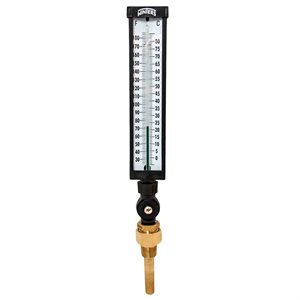

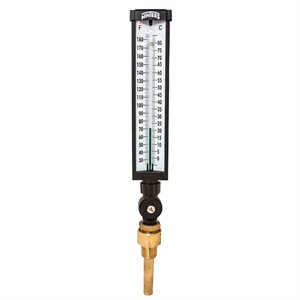

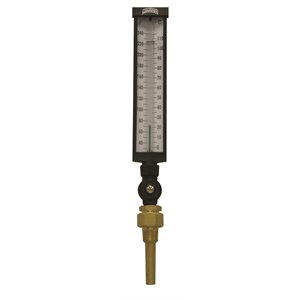

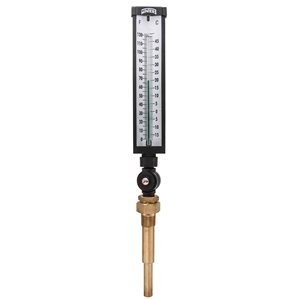

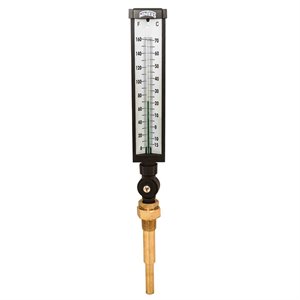

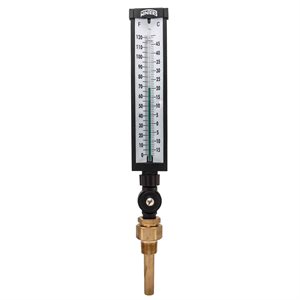

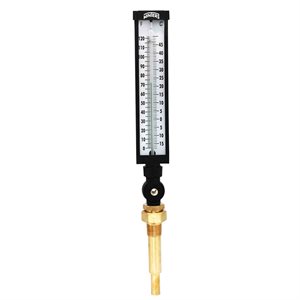

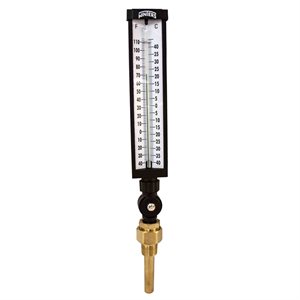

TIM/TIM-LF Industrial/Lead Free Industrial 9” Thermometer
DownloadAPPLICATIONS:
- New construction, plumbing, water lines, boilers, heating, ventilation and air conditioning
DESCRIPTION & FEATURES:
- Widely specified in the industrial and commercial plumbing trade
- Includes a separable brass or lead free brass thermowell
- 3.5” (90mm) and 6” (160mm) stem
- Available in aluminum or Valox® (9”) case
- Organic filled tube (magnifying)
- Dual scale (°F & °C)
- Adjustable angle connection and 360° case rotation for easy installation
- Graphite filled bulb chamber for maximum heat conduction
- ASME B40.200 and ASTM E2251 compliant
- RoHS compliant (with 304 SS or 316 SS thermowells only)
- CAN/CGSB-14.4-M88 compliant
- ±1% accuracy
- 5 year warranty
DOCUMENTATION:
| Dial | 9” (230mm) aluminum or Valox® case, impact resistant |
| Lens | Glass (polycarbonate available) |
| Connection | 3/4” NPT with thermowell 1/4” UNEF swivel nut (no thermowell) |
| Scales | Aluminum painted white with black markings |
| Bulb Chamber | Tapered cast aluminum with graphite fill |
| Tube and Sensing Liquid | Glass (magnifying), organic green fluid (other colours available) |
| Adjustment | Fully adjustable |
| Thermowell | TIM: 3/4” Brass separable socket (SS optional) TIM-LF: 3/4″ Lead free brass separable socket |
| Accuracy | ±1% |
| Enclosure Rating | IP54 |
