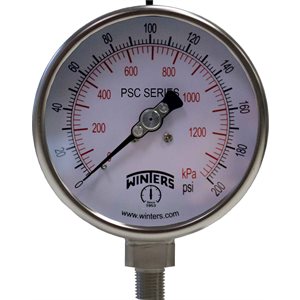

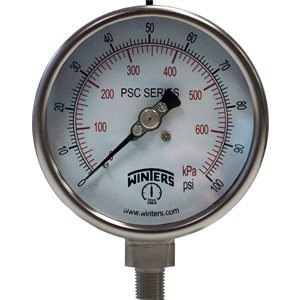

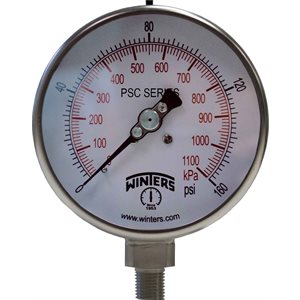

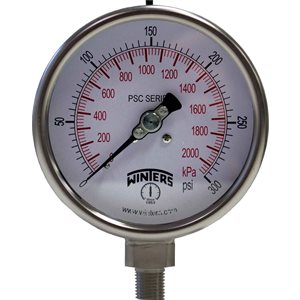

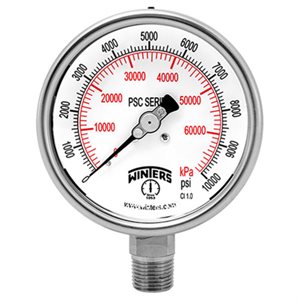

PSC Safety Case Gauge




APPLICATIONS:

  • Used where operator safety is a must

DESCRIPTION & FEATURES:

  • Solid front blowout back for the ultimate in gauge safety
  • Full rotary movement and micrometer pointer for ease in calibration
  • Overload stop
  • Stainless steel case, socket and internals
  • Safety glass lens
  • Restrictor orifice standard
  • ASME B40.100 (EN837-1 available)
  • RoHS compliant
  • CRN registered
  • 5 year warranty

DOCUMENTATION:

Case 304 SS case with blowout back
Lens

4” (100mm), 6” (150mm): Laminated safety glass

4.5” (115mm): Tempered safety glass

Ring SS bayonet
Socket 316L SS
Connection 1/4” or 1/2” NPT bottom
Bourdon Tube 316L SS
Movement 304 SS with overload stop
Pointer Aluminum, anodized black, micrometer adjustable
Over-Pressure Limit

25% for pressures up to 1,450 psi (9,998 kPa)

15% for pressures over 1,450 psi (9,998 kPa)

Working Pressure Maximum 75% of full scale value
Ambient/Process Temperature -40°F to 150°F (-40°C to 65°C)
Accuracy

4” (100mm), 6” (150mm): ±1% ANSI/ASME Grade 1A

4.5” (115mm): ±0.5% ANSI/ASME Grade 2A

Enclosure Rating

4″ (100mm), 6″ (150mm): IP67, EN60529-1 (IEC529-1)

4.5″ (115mm): IP65, EN60529-1 (IEC529-1)

  • Display Type
  • Results per Page
  • Sort by
LF / SS 4" SAFETY 0 / 100 PSI / KPA 1 / 4" BTM
  • CAD $336.55 /EACH
  • EACH
  • Qty avail.: 0
LF / SS 4" SAFETY 0 / 1000 PSI / KPA 1 / 2" BTM
  • CAD $370.20 /EACH
  • EACH
  • Qty avail.: 0
LF / SS 4" SAFETY 0 / 10000 PSI / KPA 1 / 2" BTM
  • CAD $370.20 /EACH
  • EACH
  • Qty avail.: 0
LF / SS 4" SAFETY 0 / 15 PSI / KPA 1 / 4" BOTTOM
  • CAD $336.55 /EACH
  • EACH
  • Qty avail.: 0
LF / SS 4" SAFETY 0 / 1500 PSI / KPA 1 / 2" BTM
  • CAD $370.20 /EACH
  • EACH
  • Qty avail.: 0
LF / SS 4" SAFETY 0 / 160 PSI / KPA 1 / 4" BTM
  • CAD $336.55 /EACH
  • EACH
  • Qty avail.: 0
LF / SS 4" SAFETY 0 / 200 PSI / KPA 1 / 4" BTM
  • CAD $336.55 /EACH
  • EACH
  • Qty avail.: 0
LF / SS 4" SAFETY 0 / 2000 PSI / KPA 1 / 2" BTM
  • CAD $370.20 /EACH
  • EACH
  • Qty avail.: 0
LF / SS 4" SAFETY 0 / 30 PSI / KPA 1 / 4" BOTTOM
  • CAD $336.55 /EACH
  • EACH
  • Qty avail.: 0
LF / SS 4" SAFETY 0 / 30"VAC / KPA 1 / 4" BOTTOM
  • CAD $370.20 /EACH
  • EACH
  • Qty avail.: 0
LF / SS 4" SAFETY 0 / 300 PSI / KPA 1 / 4" BTM
  • CAD $336.55 /EACH
  • EACH
  • Qty avail.: 1
LF / SS 4" SAFETY 0 / 3000 PSI / KPA 1 / 2" BTM
  • CAD $370.20 /EACH
  • EACH
  • Qty avail.: 0
LF / SS 4" SAFETY 0 / 400 PSI / KPA 1 / 4" BTM
  • CAD $336.55 /EACH
  • EACH
  • Qty avail.: 0
LF / SS 4" SAFETY 0 / 5000 PSI / KPA 1 / 2" BTM
  • CAD $370.20 /EACH
  • EACH
  • Qty avail.: 1
LF / SS 4" SAFETY 0 / 60 PSI / KPA 1 / 4" BOTTOM
  • CAD $336.55 /EACH
  • EACH
  • Qty avail.: 0
LF / SS 4" SAFETY 0 / 600 PSI / KPA 1 / 4" BTM
  • CAD $336.55 /EACH
  • EACH
  • Qty avail.: 0
LF / SS 4" SAFETY 30" / 0 / 100PSI / KPA 1 / 4" BM
  • CAD $370.20 /EACH
  • EACH
  • Qty avail.: 0
LF / SS 4" SAFETY 30" / 0 / 15 PSI / KPA 1 / 4" BM
  • CAD $370.20 /EACH
  • EACH
  • Qty avail.: 0
LF / SS 4" SAFETY 30" / 0 / 150PSI / KPA 1 / 4" BM
  • CAD $370.20 /EACH
  • EACH
  • Qty avail.: 0
LF / SS 4" SAFETY 30" / 0 / 60 PSI / KPA 1 / 4" BM
  • CAD $370.20 /EACH
  • EACH
  • Qty avail.: 0
LF / SS 4.5" SAFETY 0 / 100 PSI / KPA 1 / 4" BTM
  • CAD $336.55 /EACH
  • EACH
  • Qty avail.: 0
LF / SS 4.5" SAFETY 0 / 1000 PSI / KPA 1 / 2" BTM
  • CAD $370.20 /EACH
  • EACH
  • Qty avail.: 10+
LF / SS 4.5" SAFETY 0 / 1500 PSI / KPA 1 / 2" BTM
  • CAD $370.20 /EACH
  • EACH
  • Qty avail.: 5
LF / SS 4.5" SAFETY 0 / 200 PSI / KPA 1 / 4" BTM
  • CAD $336.55 /EACH
  • EACH
  • Qty avail.: 0
