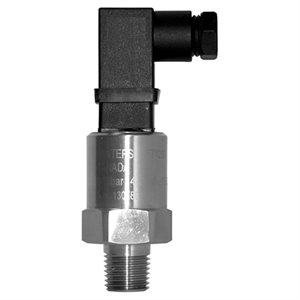

LE1 OEM Transmitter




APPLICATIONS:

  • Suitable for a variety of applications including pump and compressor monitoring, refrigeration and HVAC

DESCRIPTION & FEATURES:

  • Developed for OEM applications.
  • Compact stainless steel construction with ceramic sensor
  • Available ranges include Vac up to 8,700 psi (600 bar)
  • Wide range of mechanical and electrical connections
  • ±0.5% accuracy (±1% for pressures ≤45 psi)
  • IP65 and IP67 enclosure ratings
  • CE approved
  • 5 year warranty

DOCUMENTATION:

Output Signal

Standard 2-wire: 4-20 mA / Vs = 12-30 Vdc

Optional 3-wire: 0.5-4.5 Vdc / Vs = 10-30 Vdc
Accuracy ±0.5% FSO (±1% FSO for pressures ≤45 psi (3 x bar))
Response Time <10 ms
Insulation >100 MΩ @ 50V
Permissible Temperatures

Operating: -40°F to 212°F (-40°C to 100°C)

Compensating: 14°F to 176°F (-10°C to 80°C)
Pressure Port / Housing 304 SS
Wetted Parts

Seals: NBR

Diaphragm: Ceramic
Current Consumption

2-wire: 25 mA max

3-wire voltage: 5 mA (short-circuit current 20 mA)
EMC

EMI: EN50087-1/-2

EMS: EN50082-2
Stability

Vibration: 10 g / 5 Hz to 200 Hz

Shock: 20 g / 11 ms
Operation Life   2 M cycles
Approval CE

  • Display Type
  • Results Per Page
  • Sort By
LE1 SERIES, -1-4 BAR, 4 / 20MA, MICRO-DIN, 304 SS, 1 / 4'' NPT, 0.5% ACCURACY
  • CAD $180.65 /EACH
  • EACH
  • Qty avail.: 0
LE1 SERIES, -1 / 0 BAR, 4 / 20MA, MICRO-DIN, 304 SS, 1 / 4'' NPT, 0.5% ACCURACY
  • CAD $260.91 /EACH
  • EACH
  • Qty avail.: 0
LE1 SERIES, -1 / 10 BAR, 4 / 20MA, MICRO-DIN, 304 SS, 1 / 4'' NPT, 0.5% ACCURACY
  • CAD $180.65 /EACH
  • EACH
  • Qty avail.: 0
LE1 SERIES, -1 / 3 BAR, 4 / 20MA, MICRO-DIN, 304 SS, 1 / 4'' NPT, 0.5% ACCURACY
  • CAD $180.65 /EACH
  • EACH
  • Qty avail.: 0
LE1 SERIES, -1 / 6 BAR, 4 / 20MA, MICRO-DIN, 304 SS, 1 / 4'' NPT, 0.5% ACCURACY
  • CAD $180.65 /EACH
  • EACH
  • Qty avail.: 0
LE1 SERIES, 0 / 1 BAR, 4 / 20MA, MICRO-DIN, 304 SS, 1 / 4'' NPT, 0.5% ACCURACY
  • CAD $180.65 /EACH
  • EACH
  • Qty avail.: 0
LE1 SERIES, 0 / 1.6 BAR, 4 / 20MA, MICRO-DIN, 304 SS, 1 / 4'' NPT, 0.5% ACCURACY
  • CAD $180.65 /EACH
  • EACH
  • Qty avail.: 0
LE1 SERIES, 0 / 100 BAR, 4 / 20MA, MICRO-DIN, 304 SS, 1 / 4'' NPT, 0.5% ACCURACY
  • CAD $180.65 /EACH
  • EACH
  • Qty avail.: 0
LE1 SERIES, 0 / 100 PSI, 4 / 20MA, MICRO-DIN, 304 SS, 1 / 4'' NPT, 0.5% ACCURACY
  • CAD $177.10 /EACH
  • EACH
  • Qty avail.: 0
LE1 SERIES, 0 / 1000 PSI, 4 / 20MA, MICRO-DIN, 304 SS, 1 / 4'' NPT, 0.5% ACCURACY
  • CAD $177.10 /EACH
  • EACH
  • Qty avail.: 3
LE1 SERIES, 0 / 15 PSI, 4 / 20MA, MICRO-DIN, 304 SS, 1 / 4'' NPT, 0.5% ACCURACY
  • CAD $177.10 /EACH
  • EACH
  • Qty avail.: 0
LE1 SERIES, 0 / 150 PSI, 4 / 20MA, MICRO-DIN, 304 SS, 1 / 4'' NPT, 0.5% ACCURACY
  • CAD $177.10 /EACH
  • EACH
  • Qty avail.: 0
LE1 SERIES, 0 / 160 BAR, 4 / 20MA, MICRO-DIN, 304 SS, 1 / 4'' NPT, 0.5% ACCURACY
  • CAD $180.65 /EACH
  • EACH
  • Qty avail.: 0
LE1 SERIES, 0 / 2.5 BAR, 4 / 20MA, MICRO-DIN, 304 SS, 1 / 4'' NPT, 0.5% ACCURACY
  • CAD $180.65 /EACH
  • EACH
  • Qty avail.: 0
LE1 SERIES, 0 / 200 PSI, 4 / 20MA, MICRO-DIN, 304 SS, 1 / 4'' NPT, 0.5% ACCURACY
  • CAD $177.10 /EACH
  • EACH
  • Qty avail.: 0
LE1 SERIES, 0 / 25 PSI, 4 / 20MA, MICRO-DIN, 304 SS, 1 / 4'' NPT, 1% ACCURACY
  • CAD $177.10 /EACH
  • EACH
  • Qty avail.: 4
LE1 SERIES, 0 / 300 PSI, 4 / 20MA, MICRO-DIN, 304 SS, 1 / 4'' NPT, 0.5% ACCURACY
  • CAD $177.10 /EACH
  • EACH
  • Qty avail.: 0
LE1 SERIES, 0 / 4 BAR, 4 / 20MA, MICRO-DIN, 304 SS, 1 / 4'' NPT, 0.5% ACCURACY
  • CAD $180.65 /EACH
  • EACH
  • Qty avail.: 0
LE1 SERIES, 0 / 40 BAR, 4 / 20MA, MICRO-DIN, 304 SS, 1 / 4'' NPT, 0.5% ACCURACY
  • CAD $180.65 /EACH
  • EACH
  • Qty avail.: 0
LE1 SERIES, 0 / 50 PSI, 4 / 20MA, MICRO-DIN, 304 SS, 1 / 4'' NPT, 0.5% ACCURACY
  • CAD $177.10 /EACH
  • EACH
  • Qty avail.: 0
LE1 SERIES, 0 / 500 PSI, 4 / 20MA, MICRO-DIN, 304 SS, 1 / 4'' NPT, 0.5% ACCURACY
  • CAD $177.10 /EACH
  • EACH
  • Qty avail.: 0
LE1 SERIES, 0 / 6 BAR, 4 / 20MA, MICRO-DIN, 304 SS, 1 / 4'' NPT, 0.5% ACCURACY
  • CAD $180.65 /EACH
  • EACH
  • Qty avail.: 0
LE1 SERIES, 0 / 60 PSI, 4 / 20MA, MICRO-DIN, 304 SS, 1 / 4'' NPT, 0.5% ACCURACY
  • CAD $177.10 /EACH
  • EACH
  • Qty avail.: 0
LE1 SERIES, 30'' VAC, 4 / 20MA, MICRO-DIN, 304 SS, 1 / 4'' NPT, 0.5% ACCURACY
  • CAD $260.91 /EACH
  • EACH
  • Qty avail.: 0
