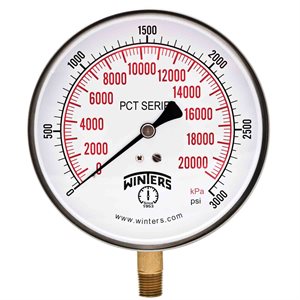

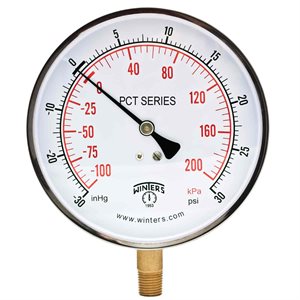

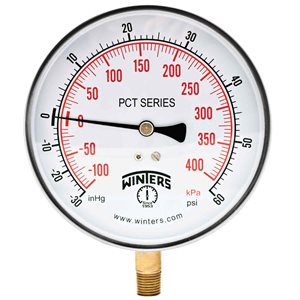

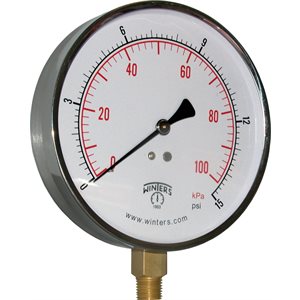

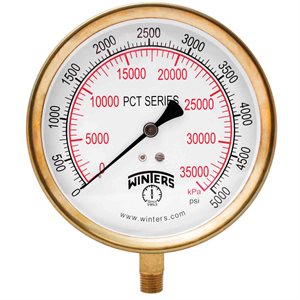

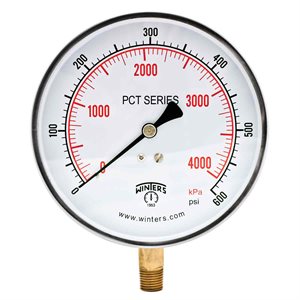

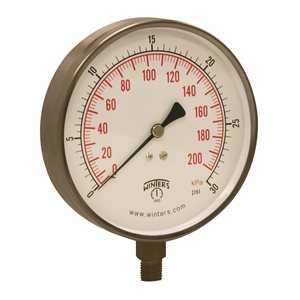

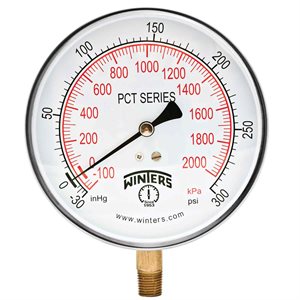

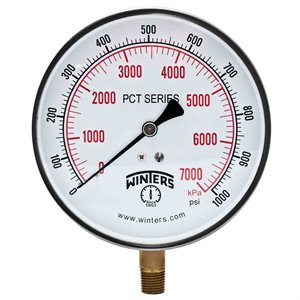

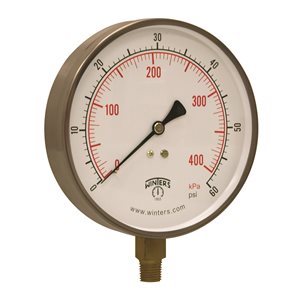

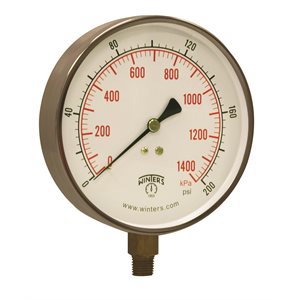

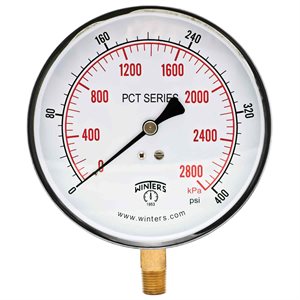

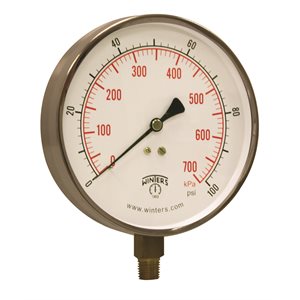

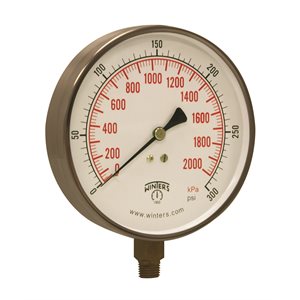

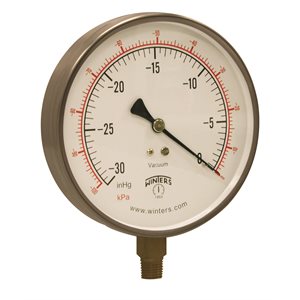

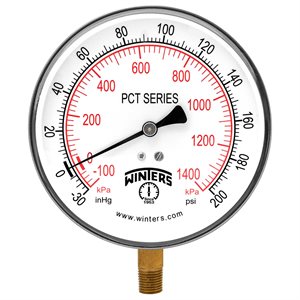

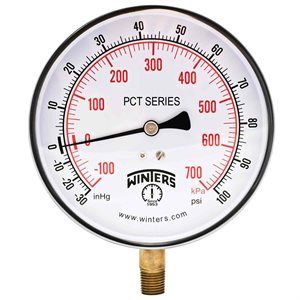

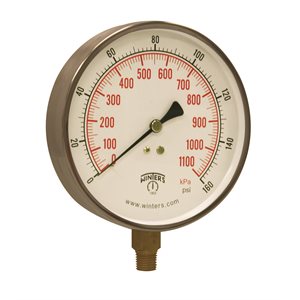

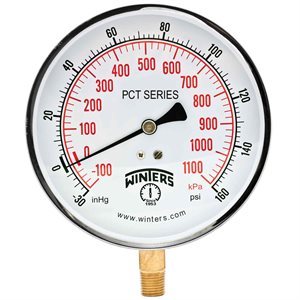

PCT/PCT-LF Contractor/Lead Free Contractor Gauge
DownloadAPPLICATIONS:
- Most commercial air, water and steam services that require a ±1% full-scale accuracy
DESCRIPTION & FEATURES:
- Economical 4.5” (115mm) stainless steel case gauge
- Brass or lead free brass wetted parts
- ±1% accuracy
- Zero adjustment screw
- 1/4” NPT
- Restricted orifice
- ASME B40.100 compliant
- CRN registered
- Lead free version NSF-61-372 certified
- 5 year warranty
DOCUMENTATION:
| Case | 304 SS |
| Lens | Acrylic |
| Ring | 304 SS |
| Socket | PCT: Brass PCT-LF: Lead free brass, NSF-61-372 certified |
| Connection | 1/4” NPT standard |
| Bourdon Tube | Phosphor bronze |
| Movement | PCT: Brass PCT-LF: Lead free brass, NSF-61-372 certified |
| Pointer | Aluminum, anodized black, recalibrator screw |
| Welding | Silver solder |
| Over-Pressure Limit | 25% for pressures up to 1,450 psi (9,998 kPa), 15% for pressures over 1,500 psi (10,342 kPa) |
| Working Pressure | Maximum 75% of full scale value |
| Ambient/Process Temperature | -40°F to 200°F (-40°C to 93°C) |
| Accuracy | ±1% ANSI/ASME Grade 1A |
| Enclosure Rating | IP52 |
