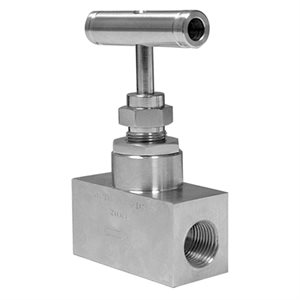

NVA NEEDLE VALVE (STRAIGHT BODY, HARD SEAT)

NVA NEEDLE VALVE (STRAIGHT BODY, HARD SEAT)

NVA NEEDLE VALVE (STRAIGHT BODY, HARD SEAT)
3D 360 Icon


APPLICATIONS:

  • Highly reliable throttle and block valve for gas or liquid service in severe duty oil and gas installations including refineries and processing plants as well as water treatment plants, power plants and hydraulic applications

DESCRIPTION & FEATURES:

  • Excellent flow regulation and leak tight
  • The one-piece body construction (no welding) provides strength, safety and corrosion resistance
  • “Slow opening” prevents sudden pressure surge and instrument damage
  • Materials include carbon steel, carbon steel NACE, stainless steel and stainless steel NACE
  • Available in Hard Seat (6,000 and 10,000 psi)
  • ASME B1.20.1 compliant
  • CRN registered
  • 5 year warranty

DOCUMENTATION:



    Carbon Steel

    Carbon Steel

    NACE

    Stainless Steel

    Stainless Steel

    NACE

    Body Carbon Steel Carbon Steel 316 SS 316 SS NACE
    Bonnet Carbon Steel Carbon Steel 316 SS 316 SS NACE
    Adapter Locknut Carbon Steel Carbon Steel 304 SS 304 SS
    Adapter 316 SS 316 SS NACE 316 SS 316 SS NACE
    Dustcap Nylon Nylon Nylon Nylon
    Handle Carbon Steel Carbon Steel 304 SS 304 SS
    Screw 304 SS 304 SS 304 SS 304 SS
    Fastening Screw 304 SS 304 SS 304 SS 304 SS
    Needle/ Needle Tip 316 SS 316 SS NACE 316 SS 316 SS NACE
    Gland Washer Carbon Steel Carbon Steel 304 SS 304 SS
    Gland Packing PTFE / Graphite PTFE / Graphite  PTFE / Graphite   PTFE / Graphite
    Dwell Pin Carbon Steel Carbon Steel 304 SS 304 SS



    • Display Type
    • Results per Page
    • Sort by
    NVA,CS,1 / 2Fx1 / 2FNPT,HARD,10K
    • CAD $72.67 /EACH
    • List Price CAD $72.67 /EACH
    • Qty avail.: 1
    NVA,CS,1 / 2Fx1 / 2FNPT,HARD,6K
    • CAD $62.79 /EACH
    • List Price CAD $62.79 /EACH
    • Qty avail.: 2
    NVA,CS,1 / 2Mx1 / 2FNPT,HARD,10K
    • CAD $72.67 /EACH
    • List Price CAD $72.67 /EACH
    • Qty avail.: 0
    NVA,CS,1 / 2Mx1 / 2FNPT,HARD,6K
    • CAD $62.79 /EACH
    • List Price CAD $62.79 /EACH
    • Qty avail.: 9
    NVA,CS,1 / 4Fx1 / 4FNPT,HARD,10K
    • CAD $58.13 /EACH
    • List Price CAD $58.13 /EACH
    • EACH
    • Qty avail.: 2
    NVA,CS,1 / 4Fx1 / 4FNPT,HARD,6K
    • CAD $58.13 /EACH
    • List Price CAD $58.13 /EACH
    • EACH
    • Qty avail.: 0
    NVA,CS,1 / 4Mx1 / 4FNPT,HARD,10K
    • CAD $58.13 /EACH
    • List Price CAD $58.13 /EACH
    • Qty avail.: 0
    NVA,CS,1 / 4Mx1 / 4FNPT,HARD,6K
    • CAD $58.13 /EACH
    • List Price CAD $58.13 /EACH
    • Qty avail.: 0
    NVA,CS,1Fx1FNPT,HARD,10K
    • CAD $102.22 /EACH
    • List Price CAD $102.22 /EACH
    • Qty avail.: 0
    NVA,CS,1Fx1FNPT,HARD,6K
    • CAD $97.36 /EACH
    • List Price CAD $97.36 /EACH
    • Qty avail.: 0
    NVA,CS,1Mx1FNPT,HARD,10K
    • CAD $102.22 /EACH
    • List Price CAD $102.22 /EACH
    • Qty avail.: 0
    NVA,CS,1Mx1FNPT,HARD,6K
    • CAD $97.36 /EACH
    • List Price CAD $97.36 /EACH
    • Qty avail.: 0
    NVA,CS,3 / 4Fx1 / 2FNPT,HARD,10K
    • CAD $96.60 /EACH
    • List Price CAD $96.60 /EACH
    • Qty avail.: 0
    NVA,CS,3 / 4Fx1 / 2FNPT,HARD,6K
    • CAD $91.75 /EACH
    • List Price CAD $91.75 /EACH
    • Qty avail.: 0
    NVA,CS,3 / 4Fx3 / 4FNPT,HARD,10K
    • CAD $112.30 /EACH
    • List Price CAD $112.30 /EACH
    • Qty avail.: 0
    NVA,CS,3 / 4Fx3 / 4FNPT,HARD,6K
    • CAD $106.71 /EACH
    • List Price CAD $106.71 /EACH
    • Qty avail.: 0
    NVA,CS,3 / 4Mx1 / 2FNPT,HARD,10K
    • CAD $96.60 /EACH
    • List Price CAD $96.60 /EACH
    • Qty avail.: 0
    NVA,CS,3 / 4Mx1 / 2FNPT,HARD,6K
    • CAD $91.75 /EACH
    • List Price CAD $91.75 /EACH
    • Qty avail.: 0
    NVA,CS,3 / 4Mx3 / 4FNPT,HARD,10K
    • CAD $112.30 /EACH
    • List Price CAD $112.30 /EACH
    • Qty avail.: 0
    NVA,CS,3 / 4Mx3 / 4FNPT,HARD,6K
    • CAD $106.71 /EACH
    • List Price CAD $106.71 /EACH
    • Qty avail.: 0
    NVA,CS,3 / 8Fx3 / 8FNPT,HARD,10K
    • CAD $84.93 /EACH
    • List Price CAD $84.93 /EACH
    • Qty avail.: 10+
    NVA,CS,3 / 8Fx3 / 8FNPT,HARD,6K
    • CAD $73.57 /EACH
    • List Price CAD $73.57 /EACH
    • Qty avail.: 0
    NVA,CS,3 / 8Mx3 / 8FNPT,HARD,10K
    • CAD $84.93 /EACH
    • List Price CAD $84.93 /EACH
    • Qty avail.: 0
    NVA,CS,3 / 8Mx3 / 8FNPT,HARD,6K
    • CAD $73.57 /EACH
    • List Price CAD $73.57 /EACH
    • Qty avail.: 0
