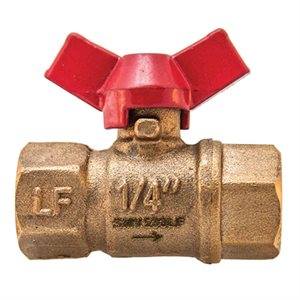

SMV/SMV-LF Mini Ball Valve/Lead Free Mini Ball Valve

SMV MINI BALL VALVE / SMV-LF LEAD FREE MINI BALL VALVE
Lead Free


APPLICATIONS:

  • Provides flow control for non-corrosive applications including water lines

DESCRIPTION & FEATURES:

  • An economical isolation valve for pressure gauges and transmitters
  • Brass or lead free brass wetted parts
  • ASME B1.20.1 compliant
  • CRN registered
  • 5 year warranty

DOCUMENTATION:

Body

SMV: #59-1 Forged brass

SMV-LF: Lead free forged brass
Ball SS
Gaskets PTFE
Handle Steel, plated, plastic covered
Process Temperature -9°F to 212°F (-23°C to 100°C)
Maximum Operating Pressure 400 psi (2,758 kPa)
Connection

1/4” NPTF x 1/4” NPTM

1/4” NPTF x 1/4” NPTF
Warning Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.  For more information go to www.P65Warnings.ca.gov.

  • Display Type
  • Results Per Page
  • Sort By
1 / 4'' NPT MINI BALL VALVE
  • CAD $24.75 /EACH
  • EACH
  • Qty avail.: 10+
BRASS T-HANDLE AIR COCK, 1 / 4"F X 1 / 4"F, RED HANDLE
  • CAD $28.78 /EACH
  • EACH
  • Qty avail.: 0
BRASS T-HANDLE AIR COCK, 1 / 4"F X 1 / 4"M, RED HANDLE
  • CAD $24.75 /EACH
  • EACH
  • Qty avail.: 10+
SMV-LF SERIES (LEAD-FREE) 1 / 4'' NPT F X F MINI BALL VALVE W / RED T-HANDLE
  • CAD $29.69 /EACH
  • EACH
  • Qty avail.: 1
