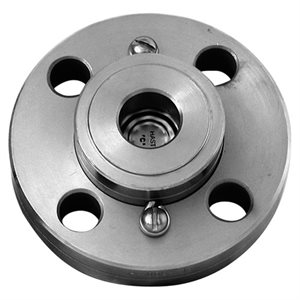

D44 Flanged Seal All Welded



APPLICATIONS:

  • Used in industrial applications such as oil refineries, pulp and paper mills and chemical plants

DESCRIPTION & FEATURES:

  • “Continuous use” seals–backing plate will prevent diaphragm from rupturing if pressure sensing instrument fails. Pressure will be held until instrument is replaced
  • Various sizes and housing materials available
  • ASME B40.100 compliant
  • 5 year warranty

DOCUMENTATION:

Housing 316 SS, Monel®, Hastelloy® B & C, titanium, tantalum, PVC, Carbon Steel, PTFE, Acetal, other (nickel plated carbon steel or SS upper housing standard)
Construction Two piece construction
Connection

1/4”, 1/2” NPTF gauge connections standard (other NPTF gauge connections available)

1” (25mm), 1.5” (40mm) and 2” (50mm) pipe size and #150 and #300 pressure rating standard (other configurations available)

Maximum Temperature Limit

450°F (232°C)

PTFE Lined: 400°F (204°C) (higher temperature limits available)

Other

Cleanout type for easy cleaning and calibrating. Saddle diaphragm seals available upon request.

Flushing connections available

  • Display Type
  • Results per Page
  • Sort by
# 80 flanged diaphragm seal, 1" 150# RF, Viton diaphragm, SS 316 body with Teflon lined
  • CAD $1,615.49 /EACH
  • List Price CAD $1,615.49 /EACH
  • EACH
  • Qty avail.: 0
1#150RF-PTFE, 1 / 2''NPT, 316SS
  • CAD $1,539.85 /EACH
  • List Price CAD $1,539.85 /EACH
  • EACH
  • Qty avail.: 6
1#150RF-PTFE, 1 / 2''NPT, CARBON STEEL
  • CAD $1,436.80 /EACH
  • List Price CAD $1,436.80 /EACH
  • EACH
  • Qty avail.: 0
1'' 150# RF, PTFE Line, PTFE Dia. SS upper
  • Contact us for pricing

  • Qty avail.: 0
1''#150RF-PTFE, 1 / 4'' NPT, STAINLESS STEEL
  • CAD $1,766.18 /EACH
  • List Price CAD $1,766.18 /EACH
  • EACH
  • Qty avail.: 0
1''300RF-PTFE, 1 / 2''NPT, STAINLESS STEEL
  • CAD $2,267.88 /EACH
  • List Price CAD $2,267.88 /EACH
  • EACH
  • Qty avail.: 0
1.5#150RF-PTFE, 1 / 2''NPT, ST / STEEL
  • CAD $1,678.23 /EACH
  • List Price CAD $1,678.23 /EACH
  • EACH
  • Qty avail.: 0
1.5#150RF-PTFE, 1 / 2''NPT,CARBON STEEL
  • CAD $1,515.43 /EACH
  • List Price CAD $1,515.43 /EACH
  • EACH
  • Qty avail.: 0
1.5#150RF-PTFE, 1 / 4''NP, ST / STEEL
  • CAD $1,949.57 /EACH
  • List Price CAD $1,949.57 /EACH
  • EACH
  • Qty avail.: 0
1.5#150RF-PTFE, 1 / 4''NPT, CARBON STEEL
  • CAD $1,681.58 /EACH
  • List Price CAD $1,681.58 /EACH
  • EACH
  • Qty avail.: 0
1.5#300RF-PTFE, 1 / 2''NPT, CARBON STEEL
  • CAD $1,136.10 /EACH
  • List Price CAD $1,136.10 /EACH
  • EACH
  • Qty avail.: 0
1.5#300RF-PTFE, 1 / 2''NPT, STAINLESS STEEL
  • CAD $1,775.50 /EACH
  • List Price CAD $1,775.50 /EACH
  • EACH
  • Qty avail.: 0
1.5#300RF-PTFE, 1 / 4''NPT, CARBON STEEL
  • CAD $1,136.10 /EACH
  • List Price CAD $1,136.10 /EACH
  • EACH
  • Qty avail.: 0
1.5#300RF-PTFE, 1 / 4''NPT, ST / STEEL
  • CAD $1,775.50 /EACH
  • List Price CAD $1,775.50 /EACH
  • EACH
  • Qty avail.: 0
1.5''150RF-PTFE, 1 / 4''NPT,CARBON STEEL
  • CAD $1,790.71 /EACH
  • List Price CAD $1,790.71 /EACH
  • EACH
  • Qty avail.: 0
1 / 2" 150#RF, Tant Dia, Hast, lower, SS upper
  • Contact us for pricing

  • Qty avail.: 0
1 / 2" CS 1" 150# RF 316 SS PTFE TANTALUM
  • CAD $1,195.73 /EACH
  • List Price CAD $1,195.73 /EACH
  • EACH
  • Qty avail.: 0
1 / 2" CS 1" 150# RF 316SS BTM, WELDED DIAPHRAGM
  • CAD $811.55 /EACH
  • List Price CAD $811.55 /EACH
  • EACH
  • Qty avail.: 0
1 / 2" CS 1" 150# RF HAST. C BTM / DIAPHRAGM
  • CAD $1,811.52 /EACH
  • List Price CAD $1,811.52 /EACH
  • EACH
  • Qty avail.: 0
1 / 2" CS 1" 150# RF MONEL HAST C DIAPHRGM
  • CAD $797.81 /EACH
  • List Price CAD $797.81 /EACH
  • EACH
  • Qty avail.: 0
1 / 2" CS 1" 300# 316 PTFE RF BTM TANT DIA
  • CAD $976.14 /EACH
  • List Price CAD $976.14 /EACH
  • EACH
  • Qty avail.: 0
1 / 2" CS 1" 300# 316SS BTM & WELDED DIAPHRAGM
  • CAD $904.97 /EACH
  • List Price CAD $904.97 /EACH
  • EACH
  • Qty avail.: 0
1 / 2" CS 1" 300# HAST C BTM & DIAPHRAGM
  • CAD $1,538.59 /EACH
  • List Price CAD $1,538.59 /EACH
  • EACH
  • Qty avail.: 0
1 / 2" CS 1" 300# MONEL RF BTM HAST C DIAP
  • CAD $1,013.70 /EACH
  • List Price CAD $1,013.70 /EACH
  • EACH
  • Qty avail.: 0
