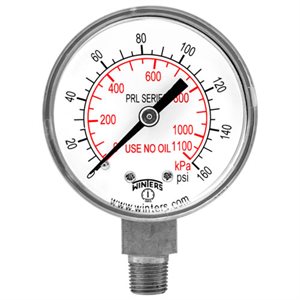

PRL Regulator Gauge




APPLICATIONS:

  • Regulators, valve positioners and actuators that require a reliable and corrosion-resistant pressure gauge

DESCRIPTION & FEATURES:

  • Small diameter, all stainless steel gauge
  • 1.5” (40mm) and 2” (50mm) dials
  • Full view snap-in lens
  • Back and bottom connection
  • ASME B40.100 compliant
  • RoHS compliant
  • CRN registered
  • 5 year warranty

DOCUMENTATION:

Case 304 SS
Lens Acrylic, snap-in type
Socket 316 SS
Connection 1/8” NPT or 1/4” NPT standard
Bourdon Tube 316 SS
Movement 304 SS
Pointer Aluminum, painted black
Welding Silver alloy
Over-Pressure Limit 25% of full scale value
Working Pressure Maximum 75% of full scale value
Ambient/Process Temperature -40°F to 150°F (-40°C to 65°C)
Accuracy ±2.5% of full scale
Enclosure Rating IP52

  • Display Type
  • Results per Page
  • Sort by

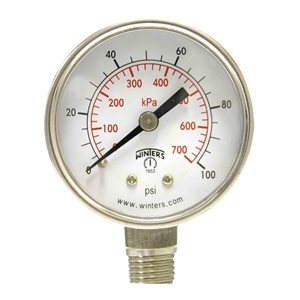

PRL SERIES 1.5'', 0 / 100 PSI / KPA, 1 / 8'' BTM, OIL FREE
  • CAD $129.02 /EACH
  • List Price CAD $129.02 /EACH
  • EACH
  • Qty avail.: 0

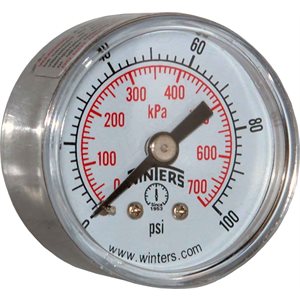

PRL SERIES 1.5'', 0 / 100 PSI / KPA, 1 / 8'' CTR BACK, OIL FREE
  • CAD $141.91 /EACH
  • List Price CAD $141.91 /EACH
  • EACH
  • Qty avail.: 1
PRL SERIES 1.5'', 0 / 160 PSI / KPA, 1 / 8'' BTM, OIL FREE
  • CAD $129.02 /EACH
  • List Price CAD $129.02 /EACH
  • EACH
  • Qty avail.: 0

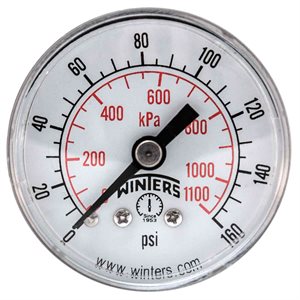

PRL SERIES 1.5'', 0 / 160 PSI / KPA, 1 / 8'' CTR BACK, OIL FREE
  • CAD $141.91 /EACH
  • List Price CAD $141.91 /EACH
  • EACH
  • Qty avail.: 0
PRL SERIES 1.5'', 0 / 30 PSI / KPA, 1 / 8'' BTM, OIL FREE
  • CAD $129.02 /EACH
  • List Price CAD $129.02 /EACH
  • EACH
  • Qty avail.: 0
PRL SERIES 1.5'', 0 / 30 PSI / KPA, 1 / 8'' CTR BACK, OIL FREE
  • CAD $141.91 /EACH
  • List Price CAD $141.91 /EACH
  • EACH
  • Qty avail.: 0
PRL SERIES 1.5'', 0 / 60 PSI / KPA, 1 / 8'' BTM, OIL FREE
  • CAD $129.02 /EACH
  • List Price CAD $129.02 /EACH
  • EACH
  • Qty avail.: 0
PRL SERIES 1.5'', 0 / 60 PSI / KPA, 1 / 8'' CTR BACK, OIL FREE
  • CAD $141.91 /EACH
  • List Price CAD $141.91 /EACH
  • EACH
  • Qty avail.: 0
PRL SERIES 2'', 0 / 100 PSI / KPA, 1 / 4'' BTM, OIL FREE
  • CAD $123.25 /EACH
  • List Price CAD $123.25 /EACH
  • EACH
  • Qty avail.: 0
PRL SERIES 2'', 0 / 100 PSI / KPA, 1 / 4'' CTR BACK, OIL FREE
  • CAD $135.58 /EACH
  • List Price CAD $135.58 /EACH
  • EACH
  • Qty avail.: 0
PRL SERIES 2'', 0 / 100 PSI / KPA, 1 / 8'' BTM, OIL FREE
  • CAD $123.25 /EACH
  • List Price CAD $123.25 /EACH
  • EACH
  • Qty avail.: 0
PRL SERIES 2'', 0 / 100 PSI / KPA, 1 / 8'' CTR BACK, OIL FREE
  • CAD $135.58 /EACH
  • List Price CAD $135.58 /EACH
  • EACH
  • Qty avail.: 0
PRL SERIES 2'', 0 / 160 PSI / KPA, 1 / 4'' BTM, OIL FREE
  • CAD $123.25 /EACH
  • List Price CAD $123.25 /EACH
  • EACH
  • Qty avail.: 10+
PRL SERIES 2'', 0 / 160 PSI / KPA, 1 / 4'' CTR BACK, OIL FREE
  • CAD $135.58 /EACH
  • List Price CAD $135.58 /EACH
  • EACH
  • Qty avail.: 0
PRL SERIES 2'', 0 / 160 PSI / KPA, 1 / 8'' BTM, OIL FREE
  • CAD $123.25 /EACH
  • List Price CAD $123.25 /EACH
  • EACH
  • Qty avail.: 4
PRL SERIES 2'', 0 / 160 PSI / KPA, 1 / 8'' CTR BACK, OIL FREE
  • CAD $135.58 /EACH
  • List Price CAD $135.58 /EACH
  • EACH
  • Qty avail.: 0
PRL SERIES 2'', 0 / 30 PSI / KPA, 1 / 4'' BTM, OIL FREE
  • CAD $123.25 /EACH
  • List Price CAD $123.25 /EACH
  • EACH
  • Qty avail.: 0
PRL SERIES 2'', 0 / 30 PSI / KPA, 1 / 4'' CTR BACK, OIL FREE
  • CAD $135.58 /EACH
  • List Price CAD $135.58 /EACH
  • EACH
  • Qty avail.: 0
PRL SERIES 2'', 0 / 30 PSI / KPA, 1 / 8'' BTM, OIL FREE
  • CAD $123.25 /EACH
  • List Price CAD $123.25 /EACH
  • EACH
  • Qty avail.: 0
PRL SERIES 2'', 0 / 30 PSI / KPA, 1 / 8'' CTR BACK, OIL FREE
  • CAD $135.58 /EACH
  • List Price CAD $135.58 /EACH
  • EACH
  • Qty avail.: 0
PRL SERIES 2'', 0 / 3000 PSI / KPA, 1 / 4'' BTM, OIL FREE
  • CAD $123.25 /EACH
  • List Price CAD $123.25 /EACH
  • EACH
  • Qty avail.: 0
PRL SERIES 2'', 0 / 3000 PSI / KPA, 1 / 4'' CTR BACK, OIL FREE
  • CAD $149.12 /EACH
  • List Price CAD $149.12 /EACH
  • EACH
  • Qty avail.: 0
PRL SERIES 2'', 0 / 60 PSI / KPA, 1 / 4'' BTM, OIL FREE
  • CAD $123.25 /EACH
  • List Price CAD $123.25 /EACH
  • EACH
  • Qty avail.: 2
PRL SERIES 2'', 0 / 60 PSI / KPA, 1 / 4'' CTR BACK, OIL FREE
  • CAD $135.58 /EACH
  • List Price CAD $135.58 /EACH
  • EACH
  • Qty avail.: 0
