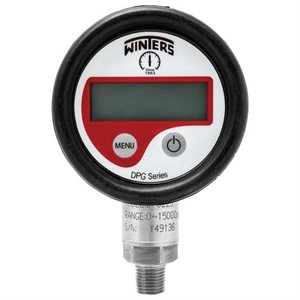

DPG Digital Pressure Gauge






APPLICATIONS:

  • Ideal for commercial and industrial applications in both test measurement and general purpose installations

DESCRIPTION & FEATURES:

  • Simple 2 button operation
  • Reset to zero feature
  • Backlight turns on when on/off button is pressed
  • Option for display to remain continuously on
  • Continuous Peak pressure indication option
  • 316L welded diaphragm seal
  • Rubber boot is standard
  • ASME B40.100 compliant
  • RoHS compliant
  • ±1% accuracy (±0.5% optional for gauges up to 10,000 psi)
  • 5 year warranty

DOCUMENTATION:

Case Size 2.5″ (63mm)
Case Material ABS
Rubber Boot Silicone rubber
LCD Display 2″ x 3/4″ (48mm x 16mm)
Connection 1/4″ NPT 304SS
Sensor 316L welded, Piezo
Operation Life 1 million cycles
Power Supply 2 x AAA battery (1.5V)
Battery Life 2yrs (auto shut-off mode)
Power Mode Auto or manual shut-off
Display Digits

4 digits to 5,000 psi

5 digits for 10,000 psi and 15,000 psi

Pressure Unit Selection

psi, mH2O, mmHg, mbar, kPa ranges ≤ 100 psi

psi, bar, kgf/cm2, MPa, atm ranges ≥ 160 psi

Response Time ≤ 3 Hz display refresh rate
Proof / Burst Pressure 200% / 300% FS
Operating / Storage Temperature

Operating: 14°F to 122°F (-10°C to 50°C)

Storage: -4°F to 167°F (-20°C to 75°C)

Accuracy ±1% (±0.5% optional for gauges up to 10,000 psi)
Enclosure Rating IP60

  • Display Type
  • Results per Page
  • Sort by
DPG SERIES, 2.5" DIAL, 0 / 15 PSI VAC, ABS CASE, RUBBER BOOT, 1 / 4" NPT LM
  • CAD $364.19 /EACH
  • List Price CAD $364.19 /EACH
  • EACH
  • Qty avail.: 5
DPG SERIES, 2.5'' DIAL, -15 / 0 / 100 PSI, ABS CASE, RUBBER BOOT, 1 / 4'' NPT LM
  • CAD $364.19 /EACH
  • List Price CAD $364.19 /EACH
  • EACH
  • Qty avail.: 5
DPG SERIES, 2.5'' DIAL, -15 / 0 / 15 PSI, ABS CASE, RUBBER BOOT, 1 / 4'' NPT LM
  • CAD $364.19 /EACH
  • List Price CAD $364.19 /EACH
  • EACH
  • Qty avail.: 0
DPG SERIES, 2.5'' DIAL, -15 / 0 / 150 PSI, ABS CASE, RUBBER BOOT, 1 / 4'' NPT LM
  • CAD $364.19 /EACH
  • List Price CAD $364.19 /EACH
  • EACH
  • Qty avail.: 0
DPG SERIES, 2.5'' DIAL, -15 / 0 / 200 PSI, ABS CASE, RUBBER BOOT, 1 / 4'' NPT LM
  • CAD $364.19 /EACH
  • List Price CAD $364.19 /EACH
  • EACH
  • Qty avail.: 0
DPG SERIES, 2.5'' DIAL, -15 / 0 / 30 PSI, ABS CASE, RUBBER BOOT, 1 / 4'' NPT LM
  • CAD $364.19 /EACH
  • List Price CAD $364.19 /EACH
  • EACH
  • Qty avail.: 0
DPG SERIES, 2.5'' DIAL, -15 / 0 / 300 PSI, ABS CASE, RUBBER BOOT, 1 / 4'' NPT LM
  • CAD $364.19 /EACH
  • List Price CAD $364.19 /EACH
  • EACH
  • Qty avail.: 0
DPG SERIES, 2.5'' DIAL, -15 / 0 / 60 PSI, ABS CASE, RUBBER BOOT, 1 / 4'' NPT LM
  • CAD $364.19 /EACH
  • List Price CAD $364.19 /EACH
  • EACH
  • Qty avail.: 0
DPG SERIES, 2.5'' DIAL, 0 / 100 PSI, ABS CASE, RUBBER BOOT, 1 / 4'' NPT LM
  • CAD $364.19 /EACH
  • List Price CAD $364.19 /EACH
  • EACH
  • Qty avail.: 4
DPG SERIES, 2.5'' DIAL, 0 / 100 PSI, ABS CASE, RUBBER BOOT, 1 / 4'' NPT LM, 0.5% ACC
  • CAD $414.67 /EACH
  • List Price CAD $414.67 /EACH
  • EACH
  • Qty avail.: 0
DPG SERIES, 2.5'' DIAL, 0 / 1000 PSI, ABS CASE, RUBBER BOOT, 1 / 4'' NPT LM
  • CAD $364.19 /EACH
  • List Price CAD $364.19 /EACH
  • EACH
  • Qty avail.: 7
DPG SERIES, 2.5'' DIAL, 0 / 1000 PSI, ABS CASE, RUBBER BOOT, 1 / 4'' NPT LM, 0.5% ACC
  • CAD $414.67 /EACH
  • List Price CAD $414.67 /EACH
  • EACH
  • Qty avail.: 0
DPG SERIES, 2.5'' DIAL, 0 / 10000 PSI, ABS CASE, RUBBER BOOT, 1 / 4'' NPT LM
  • CAD $364.19 /EACH
  • List Price CAD $364.19 /EACH
  • EACH
  • Qty avail.: 0
DPG SERIES, 2.5'' DIAL, 0 / 10000 PSI, ABS CASE, RUBBER BOOT, 1 / 4'' NPT LM, 0.5% ACC
  • CAD $522.75 /EACH
  • List Price CAD $522.75 /EACH
  • EACH
  • Qty avail.: 0
DPG SERIES, 2.5'' DIAL, 0 / 15 PSI, ABS CASE, RUBBER BOOT, 1 / 4'' NPT LM
  • CAD $364.19 /EACH
  • List Price CAD $364.19 /EACH
  • EACH
  • Qty avail.: 4
DPG SERIES, 2.5'' DIAL, 0 / 15 PSI, ABS CASE, RUBBER BOOT, 1 / 4'' NPT LM, 0.5% ACC
  • CAD $414.67 /EACH
  • List Price CAD $414.67 /EACH
  • EACH
  • Qty avail.: 0
DPG SERIES, 2.5'' DIAL, 0 / 1500 PSI, ABS CASE, RUBBER BOOT, 1 / 4'' NPT LM
  • CAD $364.19 /EACH
  • List Price CAD $364.19 /EACH
  • EACH
  • Qty avail.: 0
DPG SERIES, 2.5'' DIAL, 0 / 1500 PSI, ABS CASE, RUBBER BOOT, 1 / 4'' NPT LM, 0.5% ACC
  • CAD $414.67 /EACH
  • List Price CAD $414.67 /EACH
  • EACH
  • Qty avail.: 0
DPG SERIES, 2.5'' DIAL, 0 / 15000 PSI, ABS CASE, RUBBER BOOT, 1 / 4'' NPT LM
  • CAD $364.19 /EACH
  • List Price CAD $364.19 /EACH
  • EACH
  • Qty avail.: 10+
DPG SERIES, 2.5'' DIAL, 0 / 160 PSI, ABS CASE, RUBBER BOOT, 1 / 4'' NPT LM
  • CAD $364.19 /EACH
  • List Price CAD $364.19 /EACH
  • EACH
  • Qty avail.: 5
DPG SERIES, 2.5'' DIAL, 0 / 160 PSI, ABS CASE, RUBBER BOOT, 1 / 4'' NPT LM, 0.5% ACC
  • CAD $414.67 /EACH
  • List Price CAD $414.67 /EACH
  • EACH
  • Qty avail.: 0
DPG SERIES, 2.5'' DIAL, 0 / 200 PSI, ABS CASE, RUBBER BOOT, 1 / 4'' NPT LM
  • CAD $364.19 /EACH
  • List Price CAD $364.19 /EACH
  • EACH
  • Qty avail.: 10
DPG SERIES, 2.5'' DIAL, 0 / 200 PSI, ABS CASE, RUBBER BOOT, 1 / 4'' NPT LM, 0.5% ACC
  • CAD $414.67 /EACH
  • List Price CAD $414.67 /EACH
  • EACH
  • Qty avail.: 0
DPG SERIES, 2.5'' DIAL, 0 / 2000 PSI, ABS CASE, RUBBER BOOT, 1 / 4'' NPT LM
  • CAD $364.19 /EACH
  • List Price CAD $364.19 /EACH
  • EACH
  • Qty avail.: 0
