PEM/PEM-LF Economy/Lead Free Economy Gauge




APPLICATIONS:

  • Plumbing, heating, air conditioning, pneumatic, hydraulic, water tanks, air compressors, OEM

DESCRIPTION & FEATURES:

  • Most economical, all-purpose pressure gauge
  • 1.5” (40mm) to 4” (100mm) sizes
  • Friction bezel rings
  • Black steel case
  • Brass or lead free brass wetted parts
  • ASME B40.100 compliant (EN837-1 available)
  • ±3-2-3% accuracy
  • CRN registered
  • Lead free version NSF-61-372 certified
  • 5 year warranty

DOCUMENTATION:

Case  Steel, painted black (plastic available)
Lens

1.5” (40mm), 2” (50mm), 2.5” (63mm): Acrylic

4” (100mm): Glass

Ring

1.5” (40mm), 2” (50mm): Steel, painted black

2.5” (63mm), 4” (100mm): Steel, chrome plated

Socket

PEM: Brass

PEM-LF: Lead Free Brass, NSF-61-372 certified

Connection 1/8” NPT or 1/4” NPT standard
Bourdon Tube

PEM: Phosphor bronze

PEM-LF: Lead free phosphor bronze, NSF-61-372 certified

Movement PEM: Brass
PEM-LF (1.5", 2", 2.5"): SS, PEM-LF (4"): Lead free brass, NSF-61-372 certified
Pointer Aluminum, black
Welding Silver alloy
Over-Pressure Limit 25% of full scale value
Working Pressure Maximum 75% of full scale value
Ambient/Process Temperature -40°F to 150°F (-40°C to 65°C)
Accuracy ±3-2-3% ANSI/ASME Grade B
Enclosure Rating IP52
Warning Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.  For more information go to www.P65Warnings.ca.gov.

  • Display Type
  • Results per Page
  • Sort by

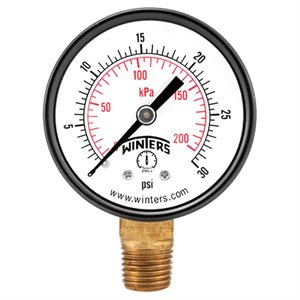

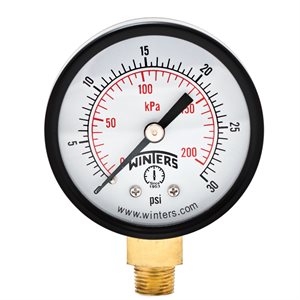

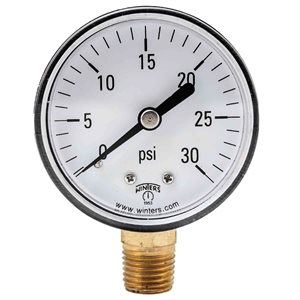

0-30 PSI POOL GAUGE
  • CAD $9.08 /EACH
  • List Price CAD $9.08 /EACH
  • EACH
  • Qty avail.: 10+
0 / 60 PSI ONLY POOL GAUGE
  • CAD $9.08 /EACH
  • List Price CAD $9.08 /EACH
  • EACH
  • Qty avail.: 10+

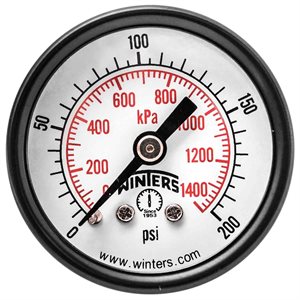

1.5'' x 1 / 8'' NPT BACK 0-200 PSI / KPA
  • CAD $18.30 /EACH
  • List Price CAD $18.30 /EACH
  • EACH
  • Qty avail.: 10+

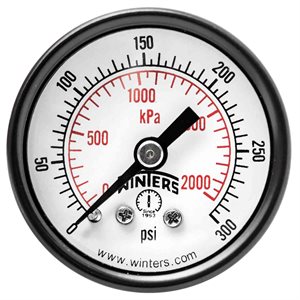

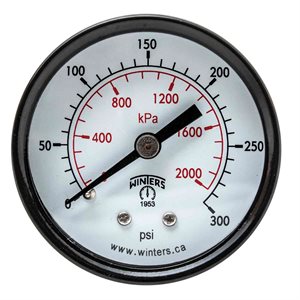

1.5'' x 1 / 8'' NPT BACK 0-300 PSI / KPA
  • CAD $18.30 /EACH
  • List Price CAD $18.30 /EACH
  • EACH
  • Qty avail.: 8

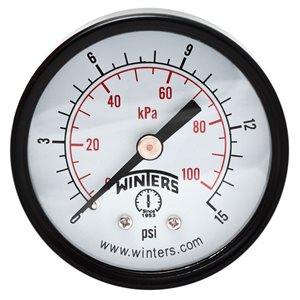

1.5'' x 1 / 8'' NPT BACK 0 / 15 PSI / KPA
  • CAD $18.30 /EACH
  • List Price CAD $18.30 /EACH
  • EACH
  • Qty avail.: 10+

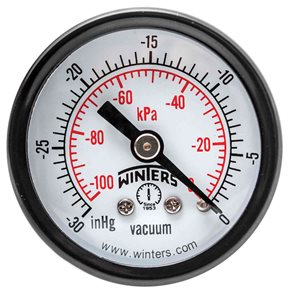

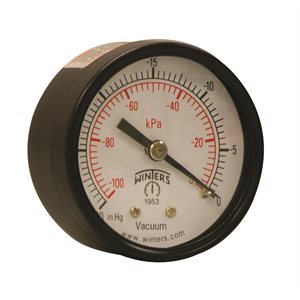

1.5'' x 1 / 8'' NPT BACK 0 / 30'' VAC / KPA
  • CAD $20.13 /EACH
  • List Price CAD $20.13 /EACH
  • EACH
  • Qty avail.: 10+

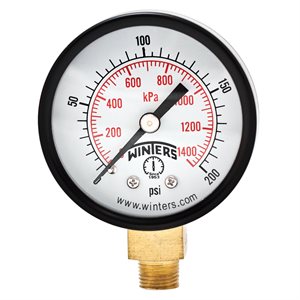

100-30 2" 0-200 PSI / KPA 1 / 8" NPT BTM.
  • CAD $9.08 /EACH
  • List Price CAD $9.08 /EACH
  • EACH
  • Qty avail.: 4

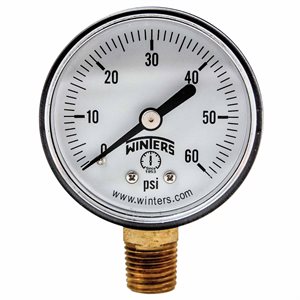

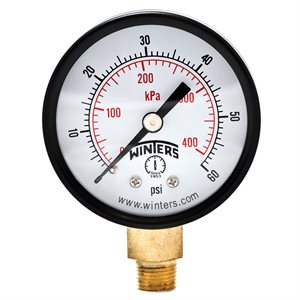

100-30 2" 0-60 PSI / KPA 1 / 8" NPT BTM.
  • CAD $9.08 /EACH
  • List Price CAD $9.08 /EACH
  • EACH
  • Qty avail.: 10+
2" DIAL X 1 / 4" NPT BOTTOM 0-30 VAC
  • CAD $16.63 /EACH
  • List Price CAD $16.63 /EACH
  • EACH
  • Qty avail.: 10+
2" x 1 / 4" NPT BACK 0 / 15 PSI / KPA
  • CAD $9.98 /EACH
  • List Price CAD $9.98 /EACH
  • EACH
  • Qty avail.: 4

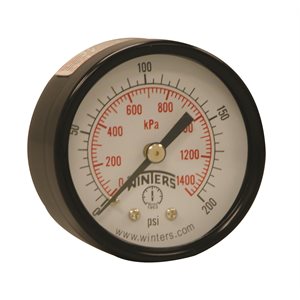

2" x 1 / 8" NPT BACK 0-200 PSI / KPA
  • CAD $9.98 /EACH
  • List Price CAD $9.98 /EACH
  • EACH
  • Qty avail.: 10+

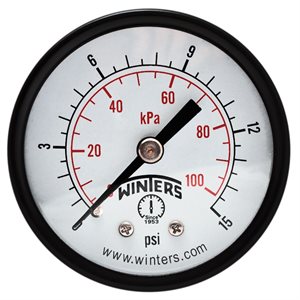

2" x 1 / 8" NPT BACK 0 / 15 PSI / KPA
  • CAD $9.98 /EACH
  • List Price CAD $9.98 /EACH
  • EACH
  • Qty avail.: 2

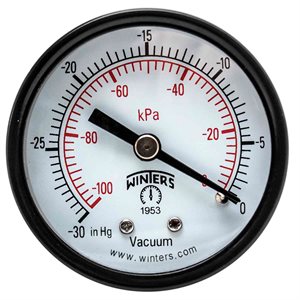

2" x 1 / 8" NPT BACK 0 / 30" VAC / KPA
  • CAD $10.99 /EACH
  • List Price CAD $10.99 /EACH
  • EACH
  • Qty avail.: 10+
2" x 1 / 8" NPT BACK 0 / 300 PSI / KPA
  • CAD $9.98 /EACH
  • List Price CAD $9.98 /EACH
  • EACH
  • Qty avail.: 4

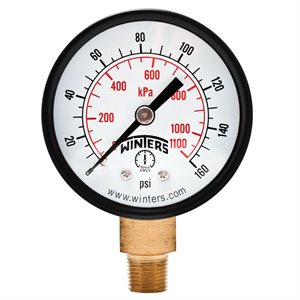

2" x 1 / 8" NPT BOTTOM 0-160 PSI / KPA
  • CAD $9.08 /EACH
  • List Price CAD $9.08 /EACH
  • EACH
  • Qty avail.: 5

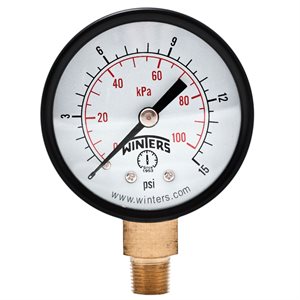

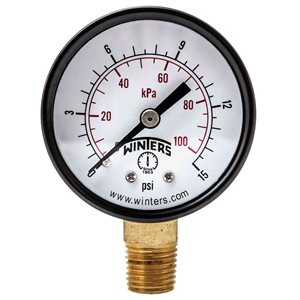

2" x 1 / 8" NPT BOTTOM 0 / 15 PSI / KPA
  • CAD $9.08 /EACH
  • List Price CAD $9.08 /EACH
  • EACH
  • Qty avail.: 2

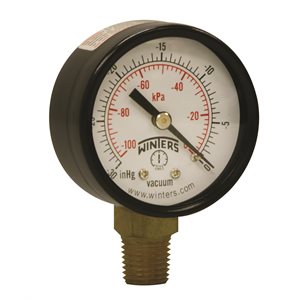

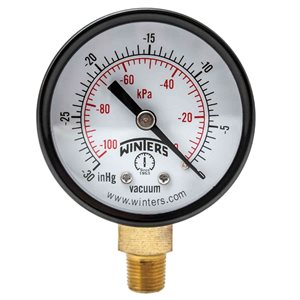

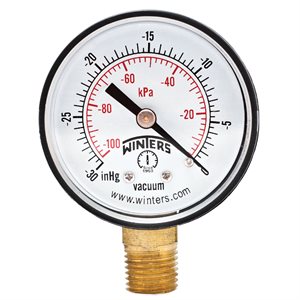

2" x 1 / 8" NPT BOTTOM 0 / 30" VAC / KPA
  • CAD $9.98 /EACH
  • List Price CAD $9.98 /EACH
  • EACH
  • Qty avail.: 9

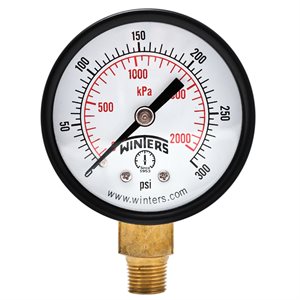

2" x 1 / 8" NPT BTM 0-300 PSI / KPA
  • CAD $9.08 /EACH
  • List Price CAD $9.08 /EACH
  • EACH
  • Qty avail.: 9
2", 1 / 4" NPT BTM, 0 / 200 PSI / KPA, HM LOGO
  • CAD $5.54 /EACH
  • List Price CAD $5.54 /EACH
  • EACH
  • Qty avail.: 0

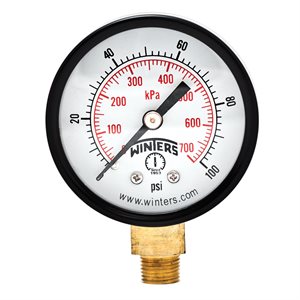

2'' 0-100 PSI / KPA 1 / 8'' NPT BTM.
  • CAD $9.08 /EACH
  • List Price CAD $9.08 /EACH
  • EACH
  • Qty avail.: 10+
