TAG HVAC Gold Case Thermometer



APPLICATIONS:

  • Heating, plumbing, air conditioning and ventilation applications

DESCRIPTION & FEATURES:

  • Available in 4.5” (115mm) or 6” (150mm) scales
  • Brass socket 1/2” NPT is standard (stainless steel optional)

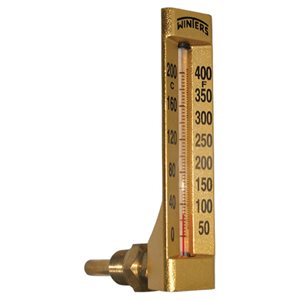

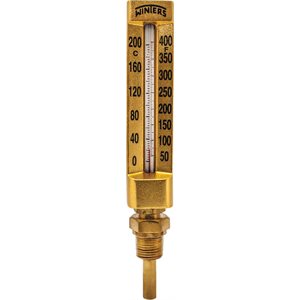

  • Available in either a straight model (bottom connection) or 90° angle model (back connection)
  • ASME B40.200 and ASTM E2251 compliant
  • 5 year warranty

DOCUMENTATION:

Scale Aluminum, black markings
Case 4.5” (110 mm), 6” (150 mm) aluminum, anodized gold
Tube Glass cushioned
Liquid Filling Organic liquid (red)
Stem Brass (SS optional)
Connection 1/2” NPT (1/2” BSP optional)
Swivel Nut Brass (SS optional; swivel and stem one unit)
Ambient/Process Temperature -40°F to 400°F (-40°C to 204°C)
Operating Temperature Maximum 80% of full scale value recommended
Accuracy ±2% of full scale
Enclosure Rating IP65
Warning Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.  For more information go to www.P65Warnings.ca.gov.

  • Display Type
  • Results Per Page
  • Sort By
HVAC Gold Case Therm Liquid 2'' Aluminum 4.5'' -40 / 110 F / C 1 / 2'' NPT Lower Back Brass Thermowell
  • CAD $82.53 /EACH
  • EACH
  • Qty avail.: 0
HVAC Gold Case Therm Liquid 2'' Aluminum 4.5'' 20 / 180 F / C 1 / 2'' NPT Lower Back Brass Thermowell
  • CAD $82.53 /EACH
  • EACH
  • Qty avail.: 0
HVAC Gold Case Therm Liquid 2'' Aluminum 4.5'' 30 / 240 F / C 1 / 2'' NPT Lower Back Brass Thermowell
  • CAD $82.53 /EACH
  • EACH
  • Qty avail.: 0
HVAC Gold Case Therm Liquid 2'' Aluminum 4.5'' 30 / 300 F / C 1 / 2'' NPT Lower Back Brass Thermowell
  • CAD $82.53 /EACH
  • EACH
  • Qty avail.: 0
HVAC Gold Case Therm Liquid 2'' Aluminum 4.5'' 50 / 400 F / C 1 / 2'' NPT Lower Back Brass Thermowell
  • CAD $82.53 /EACH
  • EACH
  • Qty avail.: 1
HVAC Gold Case Thermometer Liquid 2'' Aluminum 4.5'' -40 / 110 F / C 1 / 2'' NPT Bottom Brass Thermowell
  • CAD $69.69 /EACH
  • EACH
  • Qty avail.: 10+
HVAC Gold Case Thermometer Liquid 2'' Aluminum 4.5'' 20 / 180 F / C 1 / 2'' NPT Bottom Brass Thermowell
  • CAD $69.69 /EACH
  • EACH
  • Qty avail.: 0
HVAC Gold Case Thermometer Liquid 2'' Aluminum 4.5'' 30 / 240 F / C 1 / 2'' NPT Bottom Brass Thermowell
  • CAD $69.69 /EACH
  • EACH
  • Qty avail.: 0
HVAC Gold Case Thermometer Liquid 2'' Aluminum 4.5'' 30 / 300 F / C 1 / 2'' NPT Bottom Brass Thermowell
  • CAD $69.69 /EACH
  • EACH
  • Qty avail.: 0
HVAC Gold Case Thermometer Liquid 2'' Aluminum 4.5'' 50 / 400 F / C 1 / 2'' NPT Bottom Brass Thermowell
  • CAD $69.69 /EACH
  • EACH
  • Qty avail.: 0
HVAC Gold Case Thermometer Liquid 2'' Aluminum 6'' 30 / 240 F / C 1 / 2'' NPT Lower Back Brass Thermowell
  • CAD $90.71 /EACH
  • EACH
  • Qty avail.: 0
