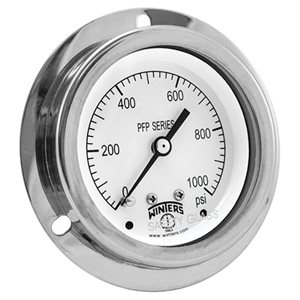

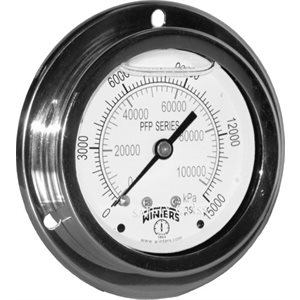

PFP Premium Stainless Steel Liquid Filled Pressure Gauge for Panel Mounting




APPLICATIONS:

  • Outdoor and severe ambient and process conditions
  • Use where harmful vibration and pulsation are present
  • Hydraulic equipment, oil field equipment, pumps, compressors and process systems

DESCRIPTION & FEATURES:

  • Liquid filled stainless steel case protects against extreme vibration and pulsation
  • Lower back mount with front flange for panel mounting
  • Bayonet ring
  • Dual and single scale available (psi/kPa & psi only)
  • Stainless steel wetted parts
  • Restricted orifice standard on dual scale (optional on single scale)
  • Safety glass
  • ASME B40.100 compliant (EN837-1 available)
  • RoHS compliant
  • CRN registered
  • 5 year warranty

DOCUMENTATION:

Case AISI 304 SS
Lens Safety glass
Ring AISI 304 SS
Socket 316L SS welded one-piece socket
Connection 1/4” NPT
Bourdon Tube 316L SS, drawn seamless
Movement 304 SS
Pointer Aluminum, anodized black
Welding Laser welded socket to case
Fill Liquid Glycerin
Over-Pressure Limit

25% for pressures up to 1,450 psi (9,998 kPa)

15% for pressures over 1,450 psi (9,998 kPa)

Fill Plug Buna N (silicone rubber option)
Lens Ring Gasket  Buna N (silicone rubber option)
Working Pressure Maximum 75% of full scale value
Ambient Temperature

Dry: -40°F to 250°F (-40°C to 120°C)

Glycerin filled: -4°F to 150°F (-20°C to 65°C)

Process Temperature -40°F to 250°F (-40°C to 120°C)
Accuracy ±1.5% of full scale
Enclosure Rating NEMA 4X/IP66, EN60529-1 (IEC529-1)

  • Display Type
  • Results per Page
  • Sort by
LF / SS 2.5'' 0-1,000 PSI, 1 / 4'' NPT LOWER BACK, FF, NO RESTRICTOR
  • CAD $129.42 /EACH
  • EACH
  • Qty avail.: 0
LF / SS 2.5'' 0-1,000 PSI / KPA, 1 / 4'' NPT LOWER BACK, FF, GLYCERIN FILLED
  • CAD $129.42 /EACH
  • EACH
  • Qty avail.: 0
LF / SS 2.5'' 0-1,500 PSI, 1 / 4'' NPT LOWER BACK, FF, NO RESTRICTOR
  • CAD $129.42 /EACH
  • EACH
  • Qty avail.: 0
LF / SS 2.5'' 0-1,500 PSI / KPA, 1 / 4'' NPT LOWER BACK, FF, GLYCERIN FILLED
  • CAD $129.42 /EACH
  • EACH
  • Qty avail.: 0
LF / SS 2.5'' 0-10,000 PSI, 1 / 4'' NPT LOWER BACK, FF, NO RESTRICTOR
  • CAD $133.49 /EACH
  • EACH
  • Qty avail.: 0
LF / SS 2.5'' 0-10,000 PSI / KPA, 1 / 4'' NPT LOWER BACK, FF, GLYCERIN FILLED
  • CAD $133.49 /EACH
  • EACH
  • Qty avail.: 0
LF / SS 2.5'' 0-100 PSI, 1 / 4'' NPT LOWER BACK, FF, NO RESTRICTOR
  • CAD $119.87 /EACH
  • EACH
  • Qty avail.: 0
LF / SS 2.5'' 0-100 PSI / KPA, 1 / 4'' NPT LOWER BACK, FF, GLYCERIN FILLED
  • CAD $119.87 /EACH
  • EACH
  • Qty avail.: 1
LF / SS 2.5'' 0-15 PSI, 1 / 4'' NPT LOWER BACK, FF, NO RESTRICTOR
  • CAD $119.87 /EACH
  • EACH
  • Qty avail.: 0
LF / SS 2.5'' 0-15 PSI / KPA, 1 / 4'' NPT LOWER BACK, FF, GLYCERIN FILLED
  • CAD $119.87 /EACH
  • EACH
  • Qty avail.: 0
LF / SS 2.5'' 0-15,000 PSI, 1 / 4'' NPT LOWER BACK, FF, NO RESTRICTOR
  • CAD $133.49 /EACH
  • EACH
  • Qty avail.: 0
LF / SS 2.5'' 0-15,000 PSI / KPA, 1 / 4'' NPT LOWER BACK, FF, GLYCERIN FILLED
  • CAD $133.49 /EACH
  • EACH
  • Qty avail.: 1
LF / SS 2.5'' 0-160 PSI, 1 / 4'' NPT LOWER BACK, FF, NO RESTRICTOR
  • CAD $119.87 /EACH
  • EACH
  • Qty avail.: 0
LF / SS 2.5'' 0-160 PSI / KPA, 1 / 4'' NPT LOWER BACK, FF, GLYCERIN FILLED
  • CAD $119.87 /EACH
  • EACH
  • Qty avail.: 0
LF / SS 2.5'' 0-2,000 PSI, 1 / 4'' NPT LOWER BACK, FF, NO RESTRICTOR
  • CAD $129.42 /EACH
  • EACH
  • Qty avail.: 0
LF / SS 2.5'' 0-2,000 PSI / KPA, 1 / 4'' NPT LOWER BACK, FF, GLYCERIN FILLED
  • CAD $129.42 /EACH
  • EACH
  • Qty avail.: 7
LF / SS 2.5'' 0-20,000 PSI, 1 / 4'' NPT LOWER BACK, FF, NO RESTRICTOR
  • CAD $133.49 /EACH
  • EACH
  • Qty avail.: 0
LF / SS 2.5'' 0-20,000 PSI / KPA, 1 / 4'' NPT LOWER BACK, FF, GLYCERIN FILLED
  • CAD $133.49 /EACH
  • EACH
  • Qty avail.: 0
LF / SS 2.5'' 0-200 PSI, 1 / 4'' NPT LOWER BACK, FF, NO RESTRICTOR
  • CAD $119.87 /EACH
  • EACH
  • Qty avail.: 0
LF / SS 2.5'' 0-200 PSI / KPA, 1 / 4'' NPT LOWER BACK, FF, GLYCERIN FILLED
  • CAD $119.87 /EACH
  • EACH
  • Qty avail.: 0
LF / SS 2.5'' 0-3,000 PSI, 1 / 4'' NPT LOWER BACK, FF, NO RESTRICTOR
  • CAD $129.42 /EACH
  • EACH
  • Qty avail.: 0
LF / SS 2.5'' 0-3,000 PSI / KPA, 1 / 4'' NPT LOWER BACK, FF, GLYCERIN FILLED
  • CAD $129.42 /EACH
  • EACH
  • Qty avail.: 0
LF / SS 2.5'' 0-30 PSI, 1 / 4'' NPT LOWER BACK, FF, NO RESTRICTOR
  • CAD $119.87 /EACH
  • EACH
  • Qty avail.: 0
LF / SS 2.5'' 0-30 PSI / KPA, 1 / 4'' NPT LOWER BACK, FF, GLYCERIN FILLED
  • CAD $119.87 /EACH
  • EACH
  • Qty avail.: 0
