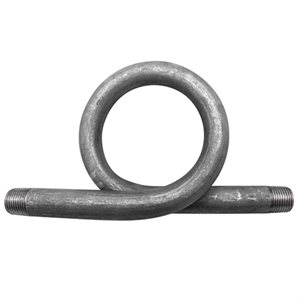

SSP Syphon
APPLICATIONS:
- Recommended for applications involving temperatures above 100°F (37°C)
DESCRIPTION & FEATURES:
- On steam service, the syphon will prevent hot steam from entering a pressure gauge, diaphragm seal or transmitter
- Available in brass/steel for non-corrosive applications and stainless steel for corrosive applications
- RoHS compliant (304 SS and 316 SS syphons only)
- CRN registered
- 5 year warranty
DOCUMENTATION:
Material | Schedule 40 seamless: Carbon steel coil, brass, 304 SS, 316 SS Schedule 80, 160 seamless: Carbon steel coil, 304 SS, 316 SS |
Style | 180° coil |
Connection | 1/4” NPT male x 1/4” NPT male 1/2” NPT male x 1/2” NPT male |
Maximum Operating Pressure | Schedule 40 seamless: Brass, carbon steel, 304 SS, 316 SS suitable up to 500 psi at 680°F (360°C) Schedule 80 seamless: Carbon steel, 304 SS, 316 SS suitable up to 1,650 psi at 630°F (332°C) Schedule 160 seamless: Carbon steel, 304 SS, 316 SS suitable up to 3,200 psi at 1,100°F (593°C) |
Warning (brass syphons only) | ![]() |
