TSW/TSW-LF Hot Water/Lead Free Hot Water Thermometer
DownloadAPPLICATIONS:
- Hot water lines, boilers and hydronic heating
DESCRIPTION & FEATURES:
- An economical and accurate way to measure air or water temperatures

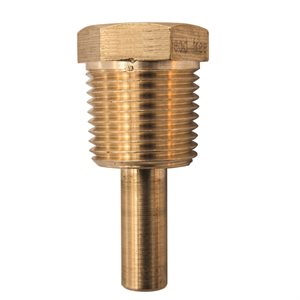

- Separable brass or lead free brass thermowell
- Bi-metallic element (dial type only)
- Dual scale (°F & °C)
- Dial type or vertical scale type
- Easy to install
- 1/2” NPT process connection
- ASME B40.200 compliant
- 5 year warranty
DOCUMENTATION:

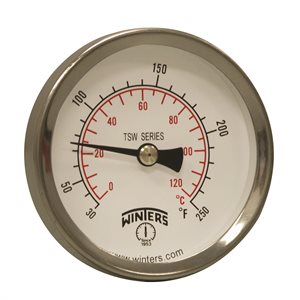

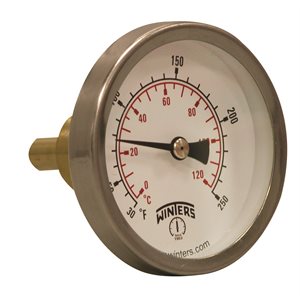

Dial Type | |
| Dial | 2.5” dial (63mm), aluminum, painted white with black and red markings |
| Case | Aluminum |
| Lens | Glass |
| Ring | Steel, chrome plated |
| Thermowell | TSW: Brass (HPB59-1), 1/2” NPT (standard), separable TSW-LF: Lead free brass, 1/2″ NPT (standard), separable |
| Stem | Brass |
| Movement | Bi-metallic element |
| Pointer | Aluminum, painted black |
| Recalibrator | Standard |
| Accuracy | ±1% |
| Warning |  Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |

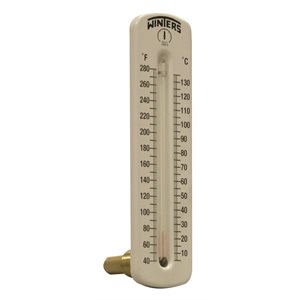

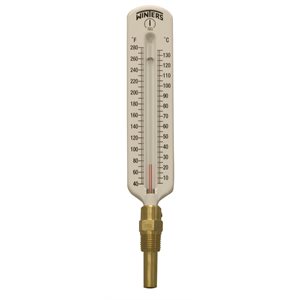

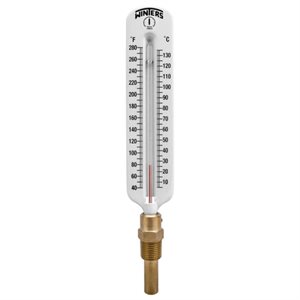

Scale Type | |
| Scale/Case | 8″ (200mm) scale with steel case, painted white with black markings |
| Tube | #N-16 glass |
| Sensing Liquid | Organic fluid |
| Thermowell | TSW: Brass (HPB59-1), 1/2” NPT standard, separable TSW-LF: Lead free brass, 1/2″ NPT standard, separable |
| Accuracy | ±1% |
| Warning | Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
