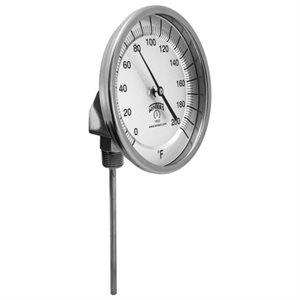

TBM Bi-Metal Thermometer



APPLICATIONS:

  • Industrial process, heating and air conditioning, ventilation and wastewater applications

DESCRIPTION & FEATURES:

  • A general purpose, versatile 1” (25mm) to 6” (150mm) dial, 304 stainless steel thermometer
  • Bi-metallic sensing element for reliable readings
  • Back, bottom or adjustable angle connection
  • Welded stem length from 2.5” (63mm) and up
  • ±1% accuracy
  • Anti-parallax dial that reduces operator reading errors (3” (75mm)–6” (150mm))
  • Recalibrator screw is standard on all dial sizes
  • ASME B40.200 compliant
  • RoHS compliant
  • 5 year warranty

DOCUMENTATION:

Dial

1” (25mm), 2” (50mm): Aluminum with black markings, flat dial

3” (75mm), 4” (100mm), 5” (127mm), 6” (150mm) Aluminum with black markings, anti-parallax

Case AISI 304 SS
Stem

AISI 304 SS, centre back, bottom or adjustable angle configurations (316 SS optional*)

1″ (25mm), 2” (50mm) dial: Centre back connection only

Recalibrator Screw Standard
Lens

1” (25mm): Polycarbonate

Others: Glass standard, hermetically sealed

Ring AISI 304 SS
Connection

1” (25mm): None

2” (50mm): 1/4” NPT standard

3” (75mm), 4” (100mm), 5” (127mm), 6” (150mm): 1/2” NPT standard

Movement Bi-metallic coil
Pointer Aluminum, painted black
Maximum Operating Pressure 125 psi (861 kPa)
Operating Temperature 75% of full scale value (recommended maximum)
Ambient Temperature -58°F to 248°F (-50°C to 120°C)
Accuracy ±1% of full scale
Enclosure Rating 2″ (50mm) to 6″ (150mm): IP68

  • Display Type
  • Results per Page
  • Sort by
#134, 2" DIAL, 8" STEM 50-550 F
  • Contact us for pricing

  • Qty avail.: 3
-40 / 120 F&C POCKET THERMOMETER
  • Contact us for pricing

  • Qty avail.: 0
-40 / 160 F "PT" POCKET THERMOMETER
  • Contact us for pricing

  • Qty avail.: 0
-40 / 160 F "PT" POCKET THERMOMETER
  • Contact us for pricing

  • Qty avail.: 10+
0 / 200 F "PT" POCKET THERMOMETER
  • Contact us for pricing

  • Qty avail.: 0
0 / 250 F ONLY "PT" POCKET THERMOMETER
  • Contact us for pricing

  • Qty avail.: 4
0 / 250 F&C POCKET THERMOMETER
  • Contact us for pricing

  • Qty avail.: 0
1" BTM, 5" POINTED STEM, 0-200C
  • Contact us for pricing

  • Qty avail.: 0
1" DIAL, CNTR BCK, 5" STEM, 150 / 750 F&C
  • Contact us for pricing

  • Qty avail.: 2
1" DIAL, POCKET THERM, 5" STEM, 20 / 240 F ONLY
  • Contact us for pricing

  • Qty avail.: 1
1" POCKET 5" STEM 200 / 1000 F&C
  • Contact us for pricing

  • Qty avail.: 0
1" x 5" CENTER BACK, -20 / 120 C ONLY
  • Contact us for pricing

  • Qty avail.: 3
1" x 5" CENTER BACK, 0 / 300 C ONLY
  • Contact us for pricing

  • Qty avail.: 0
1" x 5" pocket thermometer, -40 / 120F
  • Contact us for pricing

  • Qty avail.: 0
1'' X 5'' POCKET THERMOMETER
  • Contact us for pricing

  • Qty avail.: 7
2" DIAL 2.5" STEM -40 / 160 F ONLY BACK
  • Contact us for pricing

  • Qty avail.: 1
2" DIAL 2.5" STEM 50-500 F&C BACK CONN
  • Contact us for pricing

  • Qty avail.: 1
2" DIAL 2.5" STEM 50 / 300 F ONLY BACK CON
  • Contact us for pricing

  • Qty avail.: 0
2" DIAL 4" STEM -40 / 120 F ONLY BACK CONN
  • Contact us for pricing

  • Qty avail.: 0
2" DIAL 4" STEM 0-200 F ONLY BACK CONN
  • Contact us for pricing

  • Qty avail.: 0
2" DIAL 4" STEM 50 / 300 F ONLY BACK CONN
  • Contact us for pricing

  • Qty avail.: 0
2" DIAL 8" STEM -40 / 160 F ONLY
  • Contact us for pricing

  • Qty avail.: 0
2" DIAL 8" STEM, 1 / 4" NPT ,RANGE 0 / 250 F&C
  • Contact us for pricing

  • Qty avail.: 0
2" DIAL, 12" STEM BACK CONN THERMOMETER
  • Contact us for pricing

  • Qty avail.: 0
