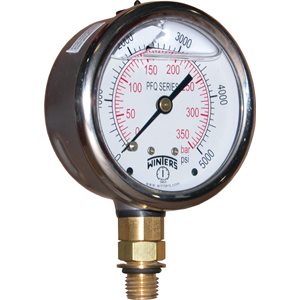

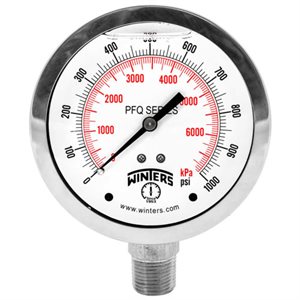

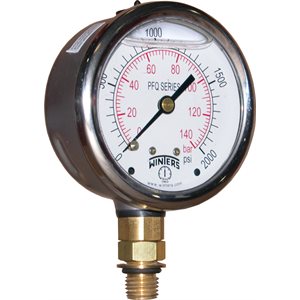

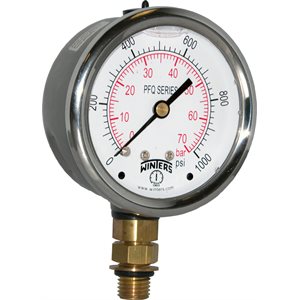

PFQ Stainless Steel Liquid Filled Gauge with SAE Connection
DownloadAPPLICATIONS:
- Ideal for hydraulic and pneumatic installations requiring instrument orientation
DESCRIPTION & FEATURES:
- Pulsation resistant, liquid filled stainless steel case
- Glycerin filled standard (dry case available)
- Brass internals
- Restricted orifice standard
- Crimp-On stainless steel bezel
- Dual scale (psi/bar)
- Optional back flange and restrictor screw
- ASME B40.1 compliant
- CRN registered
- 5 year warranty
DOCUMENTATION:
| Case | AISI 304 SS |
| Lens | Polycarbonate |
| Ring | AISI 304 SS, Crimp-On |
| Socket | Brass with restricted orifice |
| Connection | 7/16″-20 SAE, lower mount |
| Fill Liquid | Glycerin |
| Bourdon Tube | C-shaped for pressures up to and including 600 psi, spiral for pressures above 1000 psi |
| Movement | Brass |
| Pointer | Aluminum, anodized black |
| Welding | Brass: Silver Alloy, 316SS: TIG |
| Over-Pressure Limit | 25% for pressures up to 1,450 psi (9,998 kPa) 15% for pressures over 1,500 psi (10,342 kPa) |
| Socket Gasket | Buna N for two piece internal socket seal |
| Fill Plug | Buna N |
| Lens Ring Gasket | Silicone Rubber |
| Working Pressure | Maximum 75% of full scale value |
| Ambient/Process Temperature | Dry: -40°F to 200°F (-40°C to 93°C) Glycerine Filled: -4°F to 150°F (-20°C to 65°C) |
| Accuracy | ±1.5% of full scale |
| Enclosure Rating | IP65 |
| Warning |  Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
