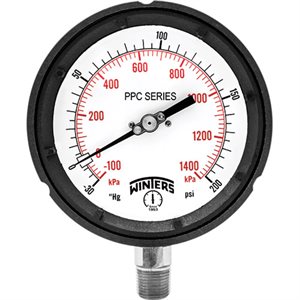

PPC-ZR StabiliZR Process Gauge
DownloadAPPLICATIONS:
- Used where operator safety is a must
- Ideally suited for process, chemical and petroleum industry applications where chemical compatibility and contamination is a concern
- Processes where pulsation or vibration exist
DESCRIPTION & FEATURES:
- StabiliZR™ dampened movement minimizes effects of pulsation and vibration without liquid filling
- Solid phenolic front and polypropylene pressure relief back safety case
- ±0.5% accuracy
- Stainless steel full rotary movement
- Micrometer adjustable pointer for ease in calibration
- Under and overload stops
- 316L stainless steel or brass wetted parts standard
- Restrictor screws standard on dual scale (optional on single scale gauges)
- ASME B40.100 compliant
- RoHS compliant (SS and Monel
® internals only) - CRN registered
- 5 year warranty
DOCUMENTATION:
Stainless Steel Internals | Brass Internals | |
| Dial | 4.5” (115mm) aluminum with black and red markings | 4.5” (115mm) aluminum with black and red markings |
| Case | Black phenolic, with safety pressure relief back, solid front, integral back flange | Black phenolic, with pressure relief back, solid front, integral back flange |
| Solid Wall | Phenolic | Phenolic |
| Pressure Relief Back | Polypropylene | Polypropylene |
| Window | Polycarbonate | Polycarbonate |
| Ring | Phenolic | Phenolic |
| Pointer | Aluminum, anodized black, micrometer adjustable | Aluminum, anodized black, micrometer adjustable |
| Socket | 316L SS | OT 58 brass |
| Connection | 1/4” or 1/2” NPT standard, bottom or back | 1/4” or 1/2” NPT standard, bottom or back |
| Bourdon Tube | 316L SS, drawn seamless | Phosphor bronze |
| Movement | 304 SS protected with under and overload stops and StabiliZR™ dampened movement (silicone in sealed chamber) | 304 SS protected with under and overload stops and StabiliZR™ dampened movement (silicone in sealed chamber) |
| Gasket Materials | Silicone (FKM option) | Silicone (FKM option) |
| Welding | TIG | Silver Alloy |
| Over-pressure Limit | 25% for pressures up to 1,450 psi (9,998 kPa), 15% for pressures 1,500 psi to 8,700 psi (10,341 kPa to 59,984 kPa), 10% for pressures above 8,701 psi (59,984 kPa) | 25% for pressures up to 1,450 psi (9,998 kPa), 15% for pressures 1,500 psi to 8,700 psi (10,341 kPa to 59,984 kPa), 10% for pressures above 8,701 psi (59,984 kPa) |
| Working Pressure | Maximum 75% of full scale value | Maximum 75% of full scale value |
| Ambient Temperature | -40°F to 250°F (-40°C to 120°C) | -40°F to 250°F (-40°C to 120°C) |
| Process Temperature | -40°F to 250°F (-40°C to 120°C) | -40°F to 150°F (-40°C to 65°C) |
| Accuracy | ±0.5% ANSI/ASME Grade 2A | ±0.5% ANSI/ASME Grade 2A |
| Enclosure Rating | IP65 | IP65 |
