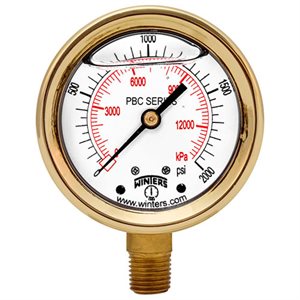

PBC Forged Brass Case Gauge




APPLICATIONS:

  • High vibration industrial and hydraulic systems

DESCRIPTION & FEATURES:

  • One piece forged brass case designed for severe service conditions
  • Easy-to-read single or dual scale dial
  • ASME B40.100 compliant
  • CRN registered
  • 5 year warranty

DOCUMENTATION:

Case

Forged brass, rugged

2.5″: Liquid filled case standard,

4″: dry case standard

Lens Polycarbonate
Ring

2.5” (63mm): Gold-coloured ABS,

4” (100mm): Polished brass

Socket Brass
Pointer Aluminum, anodized black
Connection

2.5” (63mm): 1/4” NPT bottom or back,

4” (100mm): 1/4” NPT or 1/2” NPT bottom

Wetted Parts Brass
Ambient/Process Temperature -40°F to 150°F (-40°C to 65°C)
Accuracy

2.5” (63mm): ±1.5% of full scale,

4”(100mm): ±1% ANSI/ASME Grade 1A

Enclosure Rating IP65
Warning Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.  For more information go to www.P65Warnings.ca.gov.

  • Display Type
  • Results per Page
  • Sort by
2.5'' BRASS CASE 0 / 400 PSI / KPA 1 / 4'' BACK
  • CAD $107.86 /EACH
  • List Price CAD $107.86 /EACH
  • EACH
  • Qty avail.: 0
FORGED BRASS CASE GAUGE BRASS 2.5'' 0-100 PSI 1 / 4'' NPT CBM BR SOCKET
  • CAD $118.68 /EACH
  • List Price CAD $118.68 /EACH
  • EACH
  • Qty avail.: 0
FORGED BRASS CASE GAUGE BRASS 2.5'' 0-100 PSI 1 / 4'' NPT LM BR SOCKET
  • CAD $107.90 /EACH
  • List Price CAD $107.90 /EACH
  • EACH
  • Qty avail.: 1
FORGED BRASS CASE GAUGE BRASS 2.5'' 0-100 PSI / KPA 1 / 4'' NPT CBM BR SOCKET
  • CAD $118.68 /EACH
  • List Price CAD $118.68 /EACH
  • EACH
  • Qty avail.: 0
FORGED BRASS CASE GAUGE BRASS 2.5'' 0-100 PSI / KPA 1 / 4'' NPT LM BR SOCKET
  • CAD $107.90 /EACH
  • List Price CAD $107.90 /EACH
  • EACH
  • Qty avail.: 1
FORGED BRASS CASE GAUGE BRASS 2.5'' 0-1000 PSI 1 / 4'' NPT CBM BR SOCKET
  • CAD $130.56 /EACH
  • List Price CAD $130.56 /EACH
  • EACH
  • Qty avail.: 1

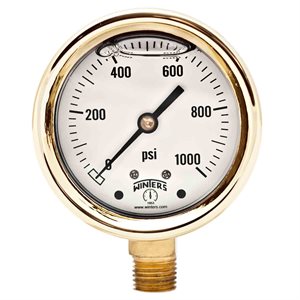

FORGED BRASS CASE GAUGE BRASS 2.5'' 0-1000 PSI 1 / 4'' NPT LM BR SOCKET
  • CAD $118.68 /EACH
  • List Price CAD $118.68 /EACH
  • EACH
  • Qty avail.: 0
FORGED BRASS CASE GAUGE BRASS 2.5'' 0-1000 PSI / KPA 1 / 4'' NPT CBM BR SOCKET
  • CAD $130.56 /EACH
  • List Price CAD $130.56 /EACH
  • EACH
  • Qty avail.: 4
FORGED BRASS CASE GAUGE BRASS 2.5'' 0-1000 PSI / KPA 1 / 4'' NPT LM BR SOCKET
  • CAD $118.68 /EACH
  • List Price CAD $118.68 /EACH
  • EACH
  • Qty avail.: 1
FORGED BRASS CASE GAUGE BRASS 2.5'' 0-10000 PSI / KPA 1 / 4'' NPT CBM BR SOCKET
  • CAD $130.56 /EACH
  • List Price CAD $130.56 /EACH
  • EACH
  • Qty avail.: 0
FORGED BRASS CASE GAUGE BRASS 2.5'' 0-10000 PSI / KPA 1 / 4'' NPT LM BR SOCKET
  • CAD $118.68 /EACH
  • List Price CAD $118.68 /EACH
  • EACH
  • Qty avail.: 0
FORGED BRASS CASE GAUGE BRASS 2.5'' 0-15 PSI 1 / 4'' NPT CBM BR SOCKET
  • CAD $118.68 /EACH
  • List Price CAD $118.68 /EACH
  • EACH
  • Qty avail.: 0
FORGED BRASS CASE GAUGE BRASS 2.5'' 0-15 PSI ONLY 1 / 4'' NPT LM BR SOCKET
  • CAD $107.90 /EACH
  • List Price CAD $107.90 /EACH
  • EACH
  • Qty avail.: 0
FORGED BRASS CASE GAUGE BRASS 2.5'' 0-15 PSI / KPA 1 / 4'' NPT CBM BR SOCKET
  • CAD $118.68 /EACH
  • List Price CAD $118.68 /EACH
  • EACH
  • Qty avail.: 0
FORGED BRASS CASE GAUGE BRASS 2.5'' 0-15 PSI / KPA 1 / 4'' NPT LM BR SOCKET
  • CAD $107.90 /EACH
  • List Price CAD $107.90 /EACH
  • EACH
  • Qty avail.: 0
FORGED BRASS CASE GAUGE BRASS 2.5'' 0-1500 PSI 1 / 4'' NPT LM BR SOCKET
  • CAD $118.68 /EACH
  • List Price CAD $118.68 /EACH
  • EACH
  • Qty avail.: 0
FORGED BRASS CASE GAUGE BRASS 2.5'' 0-1500 PSI / KPA 1 / 4'' NPT CBM BR SOCKET
  • CAD $130.56 /EACH
  • List Price CAD $130.56 /EACH
  • EACH
  • Qty avail.: 0
FORGED BRASS CASE GAUGE BRASS 2.5'' 0-1500 PSI / KPA 1 / 4'' NPT LM BR SOCKET
  • CAD $118.68 /EACH
  • List Price CAD $118.68 /EACH
  • EACH
  • Qty avail.: 0
FORGED BRASS CASE GAUGE BRASS 2.5'' 0-160 PSI 1 / 4'' NPT CBM BR SOCKET
  • CAD $118.68 /EACH
  • List Price CAD $118.68 /EACH
  • EACH
  • Qty avail.: 0

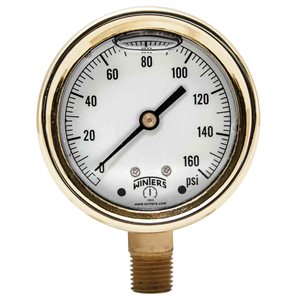

FORGED BRASS CASE GAUGE BRASS 2.5'' 0-160 PSI 1 / 4'' NPT LM BR SOCKET
  • CAD $107.90 /EACH
  • List Price CAD $107.90 /EACH
  • EACH
  • Qty avail.: 0
FORGED BRASS CASE GAUGE BRASS 2.5'' 0-160 PSI / KPA 1 / 4'' NPT CBM BR SOCKET
  • CAD $118.68 /EACH
  • List Price CAD $118.68 /EACH
  • EACH
  • Qty avail.: 0
FORGED BRASS CASE GAUGE BRASS 2.5'' 0-160 PSI / KPA 1 / 4'' NPT LM BR SOCKET
  • CAD $107.90 /EACH
  • List Price CAD $107.90 /EACH
  • EACH
  • Qty avail.: 9

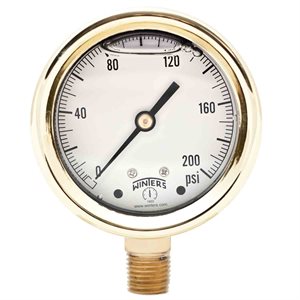

FORGED BRASS CASE GAUGE BRASS 2.5'' 0-200 PSI 1 / 4'' NPT LM BR SOCKET
  • CAD $107.90 /EACH
  • List Price CAD $107.90 /EACH
  • EACH
  • Qty avail.: 0
FORGED BRASS CASE GAUGE BRASS 2.5'' 0-200 PSI / KPA 1 / 4'' NPT CBM BR SOCKET
  • CAD $118.68 /EACH
  • List Price CAD $118.68 /EACH
  • EACH
  • Qty avail.: 0
