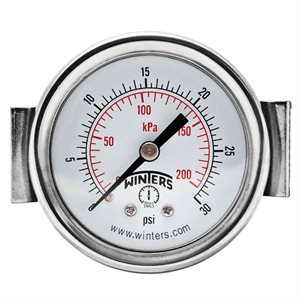

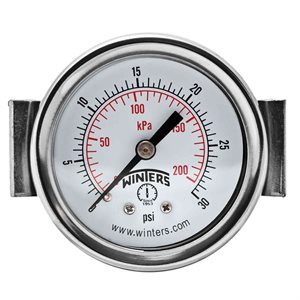

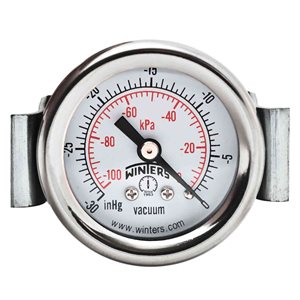

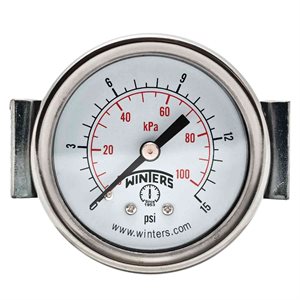

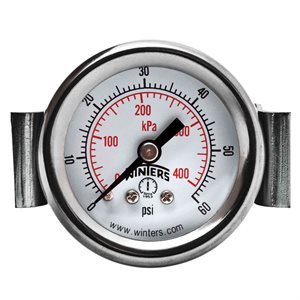

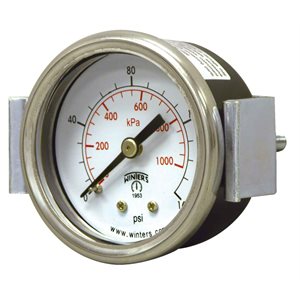

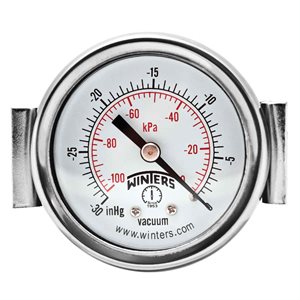

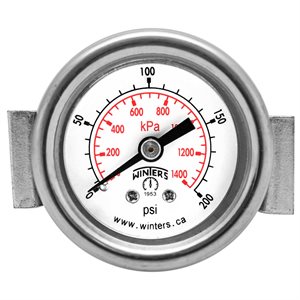

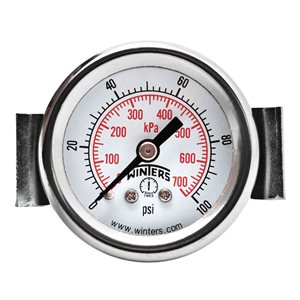

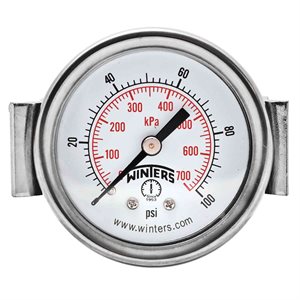

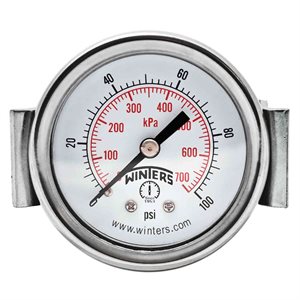

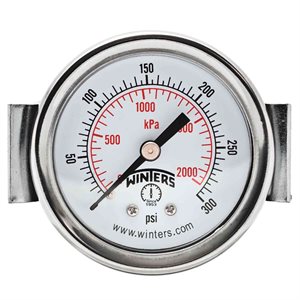

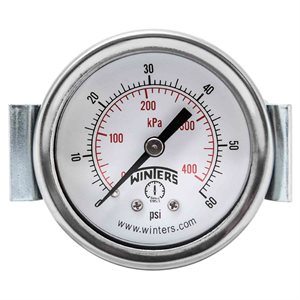

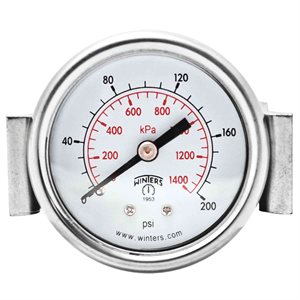

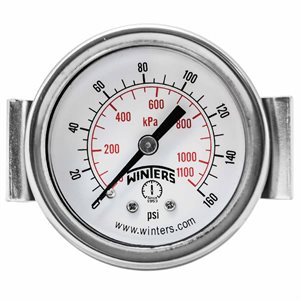

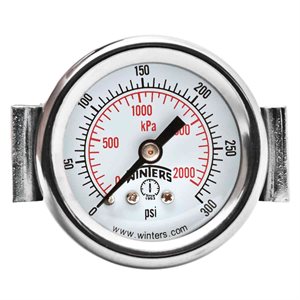

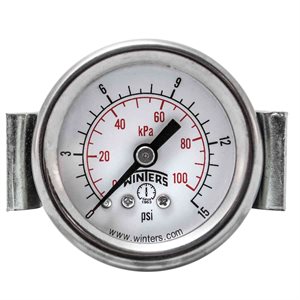

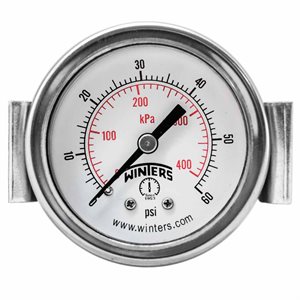

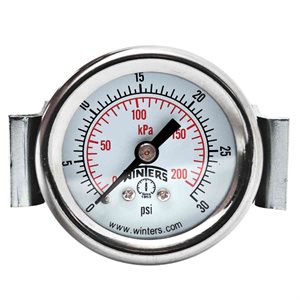

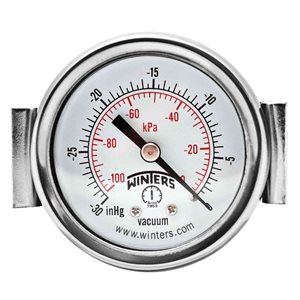

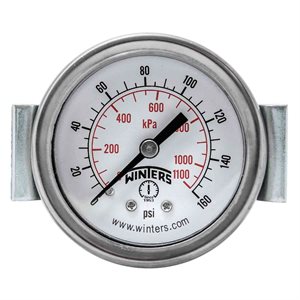

PEU Economy Panel Mounted Gauge
APPLICATIONS:
- For measuring gases, air, water and oils when equipment or processes require an economical panel mounted gauge
DESCRIPTION & FEATURES:
- Most economical pressure gauge used for panels
- 1.5” (40mm) to 2.5” (63mm) dial sizes
- Black steel case
- Brass wetted parts
- Stainless steel crimp-on bezel
- Stud-style U-Clamp design for secure panel mounting
- ±3-2-3% accuracy
- Dual scale (psi/kPa)
- ASME B40.100 compliant
- CRN registered
- 5 year warranty
DOCUMENTATION:
Case | Steel, painted black |
Lens | Polycarbonate |
Ring | SS |
Socket | Brass |
Connection | 1/8” NPT or 1/4” NPT standard |
Bourdon Tube | Phosphor bronze |
Movement | Brass |
Pointer | Aluminum, black |
Welding | Silver alloy |
Over-Pressure Limit | 25% of full scale value |
Working Pressure | Maximum 75% of full scale value |
Ambient/Process Temperature | -40°F to 150°F (-40°C to 65°C) |
Accuracy | ±3-2-3% ANSI/ASME Grade B |
Enclosure Rating | IP52 |
Warning | Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
