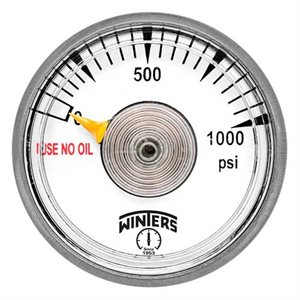

PSP Spiral Tube Gauge
DownloadAPPLICATIONS:
- Commonly used on portable pneumatic equipment as compressors, hand-held sprayers, pressurized recreational guns, oxygen tanks and regulators, pumps and fire extinguishers
DESCRIPTION & FEATURES:
- Reliable, small diameter, low profile gauge
- 1” (25mm) to 1.5” (40mm) sizes
- 1/8” NPT socket
- Direct drive (no linkages or hairsprings) eliminating premature failure from the gear and movement
- Safety over-pressure port on the lens
- “Use No Oil” for use in oxygen service
- ASME B40.100 compliant
- CRN registered

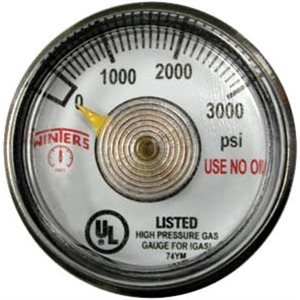

- UL listed for 1.25” and 1.5” gauges
- 5 year warranty
DOCUMENTATION:
| Case | 1” (25mm:) Nickel plated brass Others: 304 SS |
| Lens | Plexiglass |
| Spiral/Socket | 60 to 2,000 psi: Brass 3,000 psi: 304 SS |
| Connection | 1/8” NPT standard, back |
| Pointer | 2,000 psi and below: Brass 3,000 psi and above: 304 SS |
| Over-pressure Limit | 10% of full scale value 25% of full scale value (0-3,000 psi, UL404 listed) |
| Working Pressure | Maximum 75% of full scale value |
| Ambient/Process Temperature | -40°F to 150°F (-40°C to 65°C) |
| Accuracy | ±3-2-3% ANSI/ASME Grade B |
| Enclosure Rating | IP65 |
