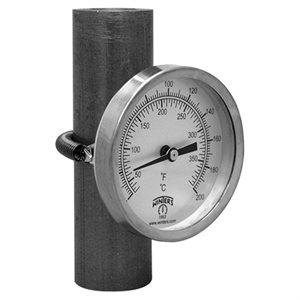

TCT Clamp-On Thermometer



APPLICATIONS:

  • To measure surface temperature on pipe in the heating, ventilation, air conditioning, wastewater, industrial process markets

DESCRIPTION & FEATURES:

  • Provides an economical and accurate method to measure surface temperatures on a 1/2” (12.5mm) to 4” (100mm) pipe
  • Clamp-on design with steel spring
  • Dual scale (°F & °C)
  • 3 ranges available
  • Easy to install
  • ASME B40.200 compliant
  • 5 year warranty

DOCUMENTATION:

Dial 2.5” (63mm) aluminum with black markings
Case Mild steel
Lens Plexiglass
Ring Steel, chrome plated
Pointer Aluminum, painted black
Over-Range Enclosure Rating 25% of full scale value
Ambient/Process Temperature -40°F to 390°F (-40°C to 200°C)
Accuracy ±3% of full scale
Enclosure Rating IP52

  • Display Type
  • Results per Page
  • Sort by
Clamp-On Thermometer Metallic n / a Steel 2.5'' -40 / 110 F / C n / a Centre Back No Socket Clamp-On
  • CAD $59.91 /EACH
  • List Price CAD $59.91 /EACH
  • EACH
  • Qty avail.: 9
Clamp-On Thermometer Metallic n / a Steel 2.5'' 30 / 250 F / C n / a Centre Back No Socket Clamp-On
  • CAD $59.91 /EACH
  • List Price CAD $59.91 /EACH
  • EACH
  • Qty avail.: 10+
Clamp-On Thermometer Metallic n / a Steel 2.5'' 30 / 390 F / C n / a Centre Back No Socket Clamp-On
  • CAD $59.91 /EACH
  • List Price CAD $59.91 /EACH
  • EACH
  • Qty avail.: 10+
