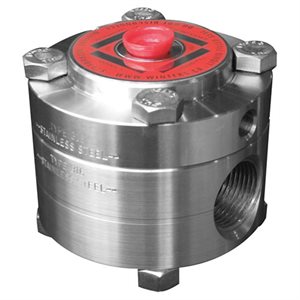

D85 In Line Flow Thru Seal



APPLICATIONS:

  • Where the process fluid is corrosive or viscous and would clog instrument internals/solidify within the pressure gauge, switch or transmitter

DESCRIPTION & FEATURES:

  • Two piece construction
  • Clean-out design allows process media to flow through the seal
  • Reduces potential for process media blockages inside diaphragm housing
  • 5 year warranty

DOCUMENTATION:

Housing 316 SS
Diaphragm  316 SS welded
Construction Two piece construction
Connection

Instrument: 1/4”, 1/2” NPTF

Process: 1/4”, 1/2”, 3/4”, 1” NPTF or socket weld

Process Temperature

-22°F to 302°F (-30°C to 150°C).

Other ranges are available upon request.

Other Other materials such as carbon steel are available upon request.

  • Display Type
  • Results per Page
  • Sort by
316SS, 1'' socket weld lower, 316SS, 1 / 2''npt , 316SS standard welded dia., upper
  • CAD $2,014.86 /EACH
  • Retail price CAD $1,026.71 /EACH
  • EACH
  • Qty avail.: 0
316SS, 1'' socket weld lower, 316SS, 1 / 4''npt , 316SS standard welded dia., upper
  • CAD $2,014.86 /EACH
  • Retail price CAD $1,026.71 /EACH
  • EACH
  • Qty avail.: 0
316SS, 1''npt lower, 316SS, 1 / 2''npt , 316SS standard welded dia., upper
  • CAD $2,124.91 /EACH
  • Retail price CAD $1,082.75 /EACH
  • EACH
  • Qty avail.: 0
316SS, 1''npt lower, 316SS, 1 / 4''npt , 316SS standard welded dia., upper
  • CAD $2,124.91 /EACH
  • Retail price CAD $1,082.75 /EACH
  • EACH
  • Qty avail.: 0
316SS, 1 / 2'' socket weld lower, 316SS, 1 / 2''npt , 316SS standard welded dia., upper
  • CAD $1,724.96 /EACH
  • Retail price CAD $878.94 /EACH
  • EACH
  • Qty avail.: 0
316SS, 1 / 2'' socket weld lower, 316SS, 1 / 4''npt , 316SS standard welded dia., upper
  • CAD $1,724.96 /EACH
  • Retail price CAD $878.94 /EACH
  • EACH
  • Qty avail.: 0
316SS, 1 / 2''npt lower, 316SS, 1 / 2''npt , 316SS standard welded dia., upper
  • CAD $1,834.92 /EACH
  • Retail price CAD $934.99 /EACH
  • EACH
  • Qty avail.: 0
316SS, 1 / 2''npt lower,316SS, 1 / 4''npt , 316SS standard welded dia., upper
  • CAD $1,834.92 /EACH
  • Retail price CAD $934.99 /EACH
  • EACH
  • Qty avail.: 0
316SS, 1 / 4'' socket weld lower, 316SS, 1 / 4''npt , 316SS standard welded dia., upper
  • CAD $1,639.90 /EACH
  • Retail price CAD $835.62 /EACH
  • EACH
  • Qty avail.: 0
316SS, 1 / 4'' socket weld lower,316SS, 1 / 2''npt , 316SS standard welded dia., upper
  • CAD $1,639.90 /EACH
  • Retail price CAD $835.62 /EACH
  • EACH
  • Qty avail.: 0
316SS, 1 / 4''npt lower, 316SS, 1 / 2''npt , 316SS standard welded dia., upper
  • CAD $1,739.91 /EACH
  • Retail price CAD $886.56 /EACH
  • EACH
  • Qty avail.: 0
316SS, 1 / 4''npt lower, 316SS, 1 / 4''npt, 316SS standard welded dia., upper
  • CAD $1,739.91 /EACH
  • Retail price CAD $886.56 /EACH
  • EACH
  • Qty avail.: 0
316SS, 3 / 4'' socket weld lower, 316SS, 1 / 2''npt , 316SS standard welded dia., upper
  • CAD $1,944.91 /EACH
  • Retail price CAD $991.04 /EACH
  • EACH
  • Qty avail.: 0
316SS, 3 / 4'' socket weld lower, 316SS, 1 / 4''npt , 316SS standard welded dia., upper
  • CAD $1,944.91 /EACH
  • Retail price CAD $991.04 /EACH
  • EACH
  • Qty avail.: 0
316SS, 3 / 4''npt lower, 316SS, 1 / 2''npt , 316SS standard welded dia., upper
  • CAD $1,939.84 /EACH
  • Retail price CAD $988.46 /EACH
  • EACH
  • Qty avail.: 0
316SS, 3 / 4''npt lower, 316SS, 1 / 4''npt , 316SS standard welded dia., upper
  • CAD $1,939.84 /EACH
  • Retail price CAD $988.46 /EACH
  • EACH
  • Qty avail.: 0
