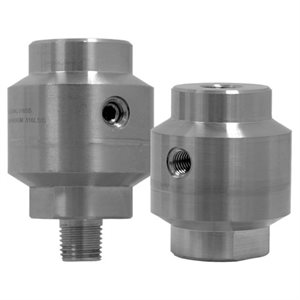

D40 Medium Duty Seal



APPLICATIONS:

  • Ideally suited for applications where space limitations exist
  • Primarily utilized to protect gauges and transmitters from corrosive media
  • Utilized in many OEM applications

DESCRIPTION & FEATURES:

  • Compact (one piece), lightweight and economical
  • ASME B40.100 compliant
  • RoHS compliant
  • CRN registered
  • 5 year warranty

DOCUMENTATION:

Housing AISI 316 SS
Diaphragm AISI 316L SS, welded
Minimum Operating Pressure 30 psi (200 kPa)
Maximum Operating Pressure 1,000 psi (6,900 kPa)
Gauge Connection 1/4”, 1/2” NPTF
Process Connection 1/4”, 1/2” NPTF or NPTM
Process Temperature -49°F to 302°F (-45°C to 150°C)

  • Display Type
  • Results per Page
  • Sort by
# 40 SEAL 1 / 4" X 1 / 2"
  • Contact us for pricing

  • Qty avail.: 10+
#40 SEAL, 1 / 2 X 1 / 2
  • Contact us for pricing

  • Qty avail.: 4
#40 SEAL,1 / 4 X 1 / 4
  • Contact us for pricing

  • Qty avail.: 10+
D40 SEAL, 1 / 2"x1 / 2" NPT FxM 316SS 15-1000PSI
  • Contact us for pricing

  • Qty avail.: 3
D40 SEAL, 1 / 4"x1 / 2" NPT FxM 316SS 15-1000PSI
  • Contact us for pricing

  • Qty avail.: 10+
D40 SEAL, 1 / 4"x1 / 4" NPT FxM 316SS 15-1000PSI
  • Contact us for pricing

  • Qty avail.: 10
