TMT Surface Magnet Thermometer




APPLICATIONS:

  • Ductwork or motor housings

DESCRIPTION & FEATURES:

  • Provides an economical and accurate method for measuring the temperature on a flat metallic surface
  • 2” (50mm) dial
  • Dual scale (°F & °C)
  • 3 ranges available
  • Easy to install
  • ASME B40.200 compliant
  • 5 year warranty

DOCUMENTATION:

 Dial  2” (50mm) aluminum with black and red markings
 Case  Steel, painted black
 Lens  Glass
 Movement  Bi-metallic coil
 Pointer  Aluminum, painted black
 Ambient/Process Temperature  Recommended maximum 75% of full scale value
 Accuracy  ±2% of full scale
 Enclosure Rating  IP52

  • Display Type
  • Results Per Page
  • Sort By

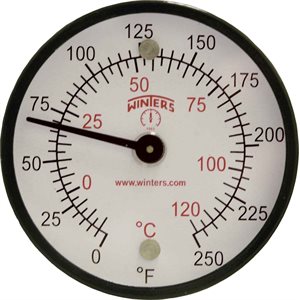

Surface Magnet Thermometer Metallic n / a Steel 2'' 0 / 250 F / C n / a Centre Back No Socket Magnet
  • CAD $109.36 /EACH
  • EACH
  • Qty avail.: 10+

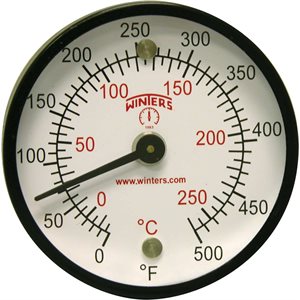

Surface Magnet Thermometer Metallic n / a Steel 2'' 0 / 500 F / C n / a Centre Back No Socket Magnet
  • CAD $109.36 /EACH
  • EACH
  • Qty avail.: 0

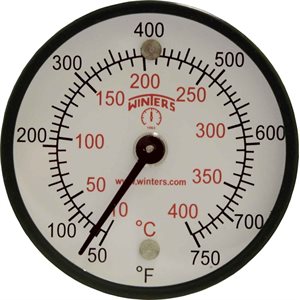

Surface Magnet Thermometer Metallic n / a Steel 2'' 50 / 750 F / C n / a Centre Back No Socket Magnet
  • CAD $109.36 /EACH
  • EACH
  • Qty avail.: 0
