PFD WinAIR DIFFERENTIAL

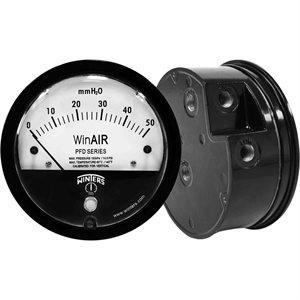

PFD WinAIR DIFFERENTIAL PRESSURE GAUGE
APPLICATIONS:
- Low pressure and differential monitoring for air and non-combustible gases including filters, blowers, vacuums, air handlers and clean rooms
DESCRIPTION & FEATURES:
- Resistance-free differential gauge for all air and
non-corrosive gas installations - Industrial grade die-cast aluminum case
- Extreme temperature tolerance with o-ring seal
- Easily accessible re-zero adjustment screw
- 2% full scale accuracy*
- 3 mounting adapters with screws included, other mounting accessories also available
- 5 year warranty
DOCUMENTATION:
-
- SPECIFICATIONS & ORDER INFORMATION
- PFD INSTRUCTIONS
- PFD1001 HANGING BRACKET INSTRUCTION SHEET
- PFD1002 SURFACE MOUNTING BRACKET INSTRUCTION SHEET
- PFD1004 FLUSH MOUNTING BRACKET INSTRUCTION SHEET
- PFD1005 AIR FILTER KIT INSTRUCTION SHEET
- PFD1006 2″ PIPE MOUNTING KIT INSTRUCTION SHEET
- PFD1007 FLANGE FOR PANEL MOUNTING INSTRUCTION SHEET
- PFD1008 FLUSH MOUNTING KIT INSTRUCTION SHEET
*Unless otherwise noted
| Case Size | 4″ (100mm), white aluminum with black markings |
| Case | Die-cast black aluminum |
| Lens | Polycarbonate |
| Ring | Threaded die-cast black aluminum |
| Connection | 1/8″ NPTF high & low pressure taps, side & back |
| Movement | Resistance-free and magnetic |
| Pointer | Aluminum, anodized black |
| Over-pressure Limit | Maximum pressure of 14.5 psi / 100 kPa |
| Ambient / Process Temperature | -40°F to 140°F (-40°C to 60°C) 14°F to 140°F (-10°C to 60°C) |
| Accuracy | ±2% of full scale value* |
| Enclosure Rating | IP67 |
| Warning |  Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
| Note: PFD to only be mounted in a vertical position |
