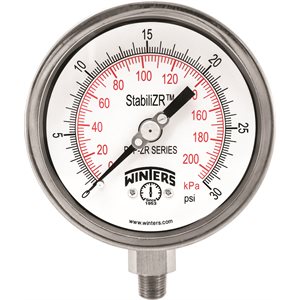

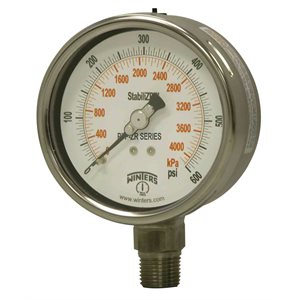

PFP-ZR Premium Stainless Steel StabiliZR Gauge



APPLICATIONS:

  • Ideally suited for process, chemical and petroleum industry
  • Where chemical compatibility and contamination is a concern

DESCRIPTION & FEATURES:

  • StabiliZR™ dampened movement minimizes effects of pulsation and vibration without liquid filling
  • Restricted orifice standard on dual scale (optional on single scale)
  • Stainless steel case
  • Under and overload stops
  • Back, bottom or panel mounted
  • 316L SS wetted parts
  • ASME B40.100 compliant (EN837-1 available)
  • RoHS compliant
  • CRN registered
  • 5 year warranty

DOCUMENTATION:

Dial 2.5” (63mm), 4” (100mm) white aluminum with black and red markings
Case AISI 304 SS (dry)
Lens Polycarbonate
Ring AISI 304 SS bayonet
Socket 316L SS
Connection

2.5” (63mm) dial: 1/4” NPT

4” (100mm) dial: 1/4”, 1/2” NPT

Bourdon Tube 316L SS
Movement 304 SS (under and overload stops 4" & 6") and StabiliZR™ dampened movement (silicone in sealed chamber)
Pointer

2.5″ (63mm): Aluminum, anodized black

4″ (100mm): Aluminum, anodized black, micrometer adjustable

Welding Laser welded socket to case
Over-pressure Limit

25% for pressures up to 1,450 psi (9,998 kPa)

15% for pressures over 1,500 psi (10,342 kPa)

Lens Ring Gasket Buna N
Ambient Temperature -40°F to 250°F (-40°C to 120°C)
Process Temperature -40°F to 250°F (-40°C to 120°C)
Working Pressure Maximum 75% of full scale value
Accuracy

2.5″ (63mm): ±1.5% of full scale

4″ (100mm): ±1% ANSI/ASME Grade 1A

Enclosure Rating NEMA 4X/IP66, EN60529-1 (IEC529-1)

  • Display Type
  • Results per Page
  • Sort by
2.5" DIAL, SS STABILIZER PREMIUM, 0-100 PSI / KPA,1 / 4"BACK
  • CAD $126.69 /EACH
  • List Price CAD $126.69 /EACH
  • EACH
  • Qty avail.: 7
2.5''DIAL, SS STABILIZER PREMIUM, 0-160 PSI / KPA, 1 / 4''BACK
  • CAD $126.69 /EACH
  • List Price CAD $126.69 /EACH
  • EACH
  • Qty avail.: 10
2.5''DIAL, SS STABILIZER PREMIUM, 0-200 PSI / KPA, 1 / 4''BACK
  • CAD $126.69 /EACH
  • List Price CAD $126.69 /EACH
  • EACH
  • Qty avail.: 10+
2.5''DIAL, SS STABILIZER PREMIUM, 0-3,000 PSI / KPA, 1 / 4''BTM
  • CAD $126.69 /EACH
  • List Price CAD $126.69 /EACH
  • EACH
  • Qty avail.: 10+
2.5''DIAL, SS STABILIZER PREMIUM, 0-30 PSI / KPA, 1 / 4''BACK
  • CAD $126.69 /EACH
  • List Price CAD $126.69 /EACH
  • EACH
  • Qty avail.: 10+
2.5''DIAL, SS STABILIZER PREMIUM, 0-30 PSI / KPA, 1 / 4''BTM
  • CAD $115.17 /EACH
  • List Price CAD $115.17 /EACH
  • EACH
  • Qty avail.: 10+
2.5''DIAL, SS STABILIZER PREMIUM, 0-5,000 PSI / KPA, 1 / 4''BTM
  • CAD $126.69 /EACH
  • List Price CAD $126.69 /EACH
  • EACH
  • Qty avail.: 10+
2.5''DIAL, SS STABILIZER PREMIUM, 0-60 PSI / KPA, 1 / 4''BACK
  • CAD $126.69 /EACH
  • List Price CAD $126.69 /EACH
  • EACH
  • Qty avail.: 4
2.5''DIAL, SS STABILIZER PREMIUM, 30'' HG VAC ONLY, 1 / 4''BTM
  • CAD $126.69 /EACH
  • List Price CAD $126.69 /EACH
  • EACH
  • Qty avail.: 0
2.5''DIAL, SS STABILIZER PREMIUM, 30'' / 0 / 30 PSI / KPA, 1 / 4''BACK
  • CAD $139.37 /EACH
  • List Price CAD $139.37 /EACH
  • EACH
  • Qty avail.: 0
4.0''DIAL, SS STABILIZER PREMIUM, 0-100 PSI / KPA, 1 / 2''BTM
  • CAD $223.23 /EACH
  • List Price CAD $223.23 /EACH
  • EACH
  • Qty avail.: 10+
4.0''DIAL, SS STABILIZER PREMIUM, 0-100 PSI / KPA, 1 / 4''BTM
  • CAD $223.23 /EACH
  • List Price CAD $223.23 /EACH
  • EACH
  • Qty avail.: 4
4.0''DIAL, SS STABILIZER PREMIUM, 0-15 PSI / KPA, 1 / 4''BTM
  • CAD $223.23 /EACH
  • List Price CAD $223.23 /EACH
  • EACH
  • Qty avail.: 4
4.0''DIAL, SS STABILIZER PREMIUM, 0-160 PSI / KPA, 1 / 2''BTM
  • CAD $223.23 /EACH
  • List Price CAD $223.23 /EACH
  • EACH
  • Qty avail.: 0
4.0''DIAL, SS STABILIZER PREMIUM, 0-2,000 PSI / KPA, 1 / 2''BTM
  • CAD $245.57 /EACH
  • List Price CAD $245.57 /EACH
  • EACH
  • Qty avail.: 4
4.0''DIAL, SS STABILIZER PREMIUM, 0-200 PSI / KPA, 1 / 2''BTM
  • CAD $223.23 /EACH
  • List Price CAD $223.23 /EACH
  • EACH
  • Qty avail.: 6
4.0''DIAL, SS STABILIZER PREMIUM, 0-200 PSI / KPA, 1 / 4''BTM
  • CAD $223.23 /EACH
  • List Price CAD $223.23 /EACH
  • EACH
  • Qty avail.: 8
4.0''DIAL, SS STABILIZER PREMIUM, 0-30 PSI / KPA, 1 / 2''BTM
  • CAD $223.23 /EACH
  • List Price CAD $223.23 /EACH
  • EACH
  • Qty avail.: 10+
4.0''DIAL, SS STABILIZER PREMIUM, 0-30 PSI / KPA, 1 / 4''BTM
  • CAD $223.23 /EACH
  • List Price CAD $223.23 /EACH
  • EACH
  • Qty avail.: 10+
4.0''DIAL, SS STABILIZER PREMIUM, 0-300 PSI / KPA, 1 / 2''BTM
  • CAD $223.23 /EACH
  • List Price CAD $223.23 /EACH
  • EACH
  • Qty avail.: 3
4.0''DIAL, SS STABILIZER PREMIUM, 0-300 PSI / KPA, 1 / 4''BTM
  • CAD $223.23 /EACH
  • List Price CAD $223.23 /EACH
  • EACH
  • Qty avail.: 0
4.0''DIAL, SS STABILIZER PREMIUM, 0-5,000 PSI / KPA, 1 / 4''BACK
  • CAD $270.13 /EACH
  • List Price CAD $270.13 /EACH
  • EACH
  • Qty avail.: 0
4.0''DIAL, SS STABILIZER PREMIUM, 0-60 PSI / KPA, 1 / 4''BTM
  • CAD $223.23 /EACH
  • List Price CAD $223.23 /EACH
  • EACH
  • Qty avail.: 0
4.0''DIAL, SS STABILIZER PREMIUM, 0-600 PSI / KPA, 1 / 2''BTM
  • CAD $223.23 /EACH
  • List Price CAD $223.23 /EACH
  • EACH
  • Qty avail.: 10+
